PLUMBING
8
Replacement
Parts for
T&S Brass
wastes

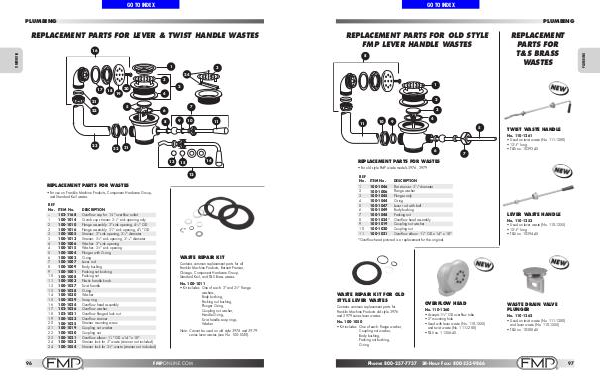

Replacement Parts for Old Style
FMP Lever Handle Wastes
1
2
3
11
10
4
9
5
6
7
Twist waste handle
No. 110-1261
• Used on twist waste (No. 111-1280)
• 13 1 ⁄ 2 " long
• T&S no. 10393-45
Replacement Parts for Wastes
• For old style FMP waste models 3976, 3979
REF
No.
1
2
3
4
5
6
7
8
9
10
11
ITEM No.
100-1046
100-1006
100-1045
100-1044
100-1047
100-1049
100-1048
100-1024*
100-1019
100-1020
100-1021
DESCRIPTION
©2011 Franklin Machine Products
Flat strainer: 3 1 ⁄ 4 " diameter
Flange washer
Plunger only
O-ring
Lever rod with ball
Body bushing
Packing nut
Overflow head assembly
Coupling nut washer
Coupling nut
Overflow elbow: 1 1 ⁄ 4 " OD x 14" x 18"
Lever waste handle
No. 110-1253
• Used on lever waste (No. 110-1255)
• 12 1 ⁄ 2 " long
• T&S no. 10394-45
*Overflow head pictured is a replacement for the original.
Waste Repair Kit for Old
Style Lever Wastes
Contains common replacement parts for
Franklin Machine Products old style 3976
and 3979 series lever wastes.
No. 100-1050
• Kit includes: One of each: flange washer,

Coupling nut washer,

Body bushing,

Packing nut bushing,

O-ring
Phone: [phone]
OVERFLOW HEAD
No. 110-1260
• Accepts 1 1 ⁄ 4 " OD overflow tube
• 2" mounting hole
• Used with lever waste (No. 110-1255)
and twist waste (No. 111-1280)
• T&S no. 11356-45
24-Hour Fax: [phone]
Waste drain valve
plunger
No. 110-1262
• Used on twist waste (No. 111-1280)
and lever waste (No. 110-1255)
• T&S no. 10388-45
