PLUMBING

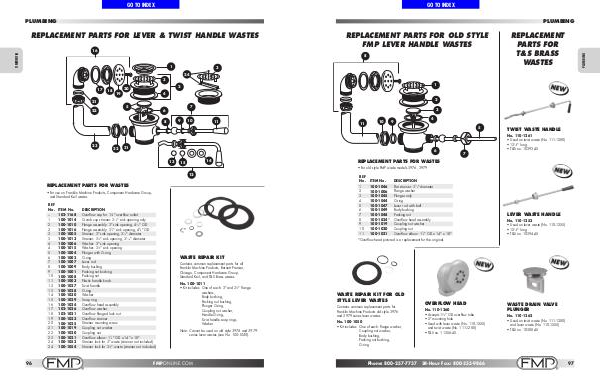

Replacement Parts for Lever & Twist Handle Wastes
16
1
3
24
3
17
18
2
20
4
19
21
5
22
7
6
9
8
23
22
10
11
21
13
©2011 Franklin Machine Products
14
15
12
Replacement Parts for Wastes
• For use on Franklin Machine Products, Component Hardware Group,
and Standard Keil wastes
REF
No.
–
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
96
ITEM No.
102-1168
100-1014
100-1010
100-1016
100-1005
100-1013
100-1006
100-1015
100-1004
100-1002
100-1007
100-1009
100-1001
100-1008
100-1003
100-1027
100-1028
100-1030
100-1029
100-1024
102-1026
102-1021
100-1023
100-1025
100-1019
100-1020
100-1021
100-1053
100-1054
DESCRIPTION
Overflow cap for 1 1 ⁄ 4 " overflow outlet
Crumb cup strainer: 3 1 ⁄ 2 " sink opening only
Flange assembly: 3" sink opening, 4 1 ⁄ 8 " OD
Flange assembly: 3 1 ⁄ 2 " sink opening, 4 3 ⁄ 8 " OD
Strainer: 3" sink opening, 3 1 ⁄ 8 " diameter
Strainer: 3 1 ⁄ 2 " sink opening, 3 7 ⁄ 16 " diameter
Washer: 3" sink opening
Washer: 3 1 ⁄ 2 " sink opening
Plunger with O-ring
O-ring
Lever rod
Body bushing
Packing nut bushing
Packing nut
Plastic handle knob
Twist handle
O-ring
Washer
Snap ring
Overflow head assembly
Overflow washer
Overflow flanged lock nut
Overflow strainer
Strainer mounting screw
Coupling nut washer
Coupling nut
Overflow elbow: 1 1 ⁄ 4 " OD x 14" x 18"
Strainer lock for 3" waste (strainer not included)
Strainer lock for 3 1 ⁄ 2 " waste (strainer not included)
Waste Repair Kit
Contains common replacement parts for all
Franklin Machine Products, Barnett Premier,
Chicago, Component Hardware Group,
Standard Keil, and T&S Brass wastes.
No. 100-1011
• Kit includes: One of each: 3" and 3 1 ⁄ 2 " flange
washers,

Body bushing,

Packing nut bushing,

Plunger O-ring,

Coupling nut washer,

Handle O-ring,

Twist handle snap rings,

Washer
Note: Cannot be used on old style 3976 and 3979
series lever wastes (see No. 100-1050).
