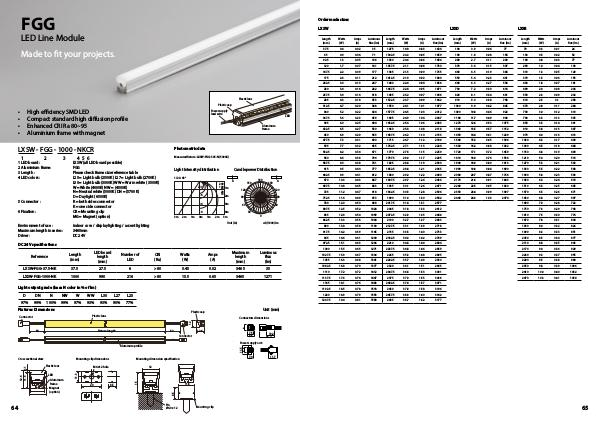

FKK Corporation LED products Catalogs FKK Corporation LED Lighting Catalog 2019 | Page 64

FGG
LED Line Module
Made to fit your projects.
Plastic lens
Plastic cap
•
•
•
•
High efficiency SMD LED
Compact standard high diffusion profile
Enhanced CRI Ra 80~95
Aluminium frame with magnet
Power supply
lead wire
Aluminum
frame
LXSW - FGG - 1000 - NKCR
1
2
1 LED board :
2 Aluminium frame:
3 Length :
4 LED colors :

5 Connector :

6 Fixation :

3
Environment of use :
Maximum length in series :
Driver :
LED
Photometric data
4 5 6
Measured fixture: LXSW-FGG-505-N (5000K)
LXSW (all LED board possible)
FGG
Please check frame size reference table
L25 = Light bulb (2500K) L27 = Light bulb (2700K)
L30 = Light bulb (3000K) WW = Warm white (3500K)
W = White (4000K) NW = (4500K)
N = Neutral white (5000K) DN = (5700K)
D = Daylight (6500K)
R = both sides connector
K = one side connector
CR = Mounting clip
MG = Magnet (option)
Light Intensity distribution
Candlepower Distribution
1/2 A 63°
54 200
100
50 1m
20
10
2m
24 3m
14
0m 4m
3m
220
3m
2m
1m
1m
2m
A
150
180
120
120
100 200 300
90
60
90
60
30
30
0
Unit (lx)
indoor cove / display lighting / accent lighting
3465mm
DC 24V
A
150
cd/(1000)lm
DC 24V specifications
Length
(mm) LED board
length
(mm) LXSW-FGG-37.5-NK 37.5 27.5 6 > 80 0.45 0.02 3465 35
LXSW-FGG-1000-NK 1000 990 216 > 80 15.5 0.65 3465 1271
Reference
Number of
LED
CRI
(Ra)
Watts
(W)
Amps
(A)
Maximum
length
(mm)
Luminous
flux
(lm)
Light output grade (base N color in % of lm)
D DN N NW W WW L30 L27 L25
97% 99% 100% 99% 97% 93% 93% 90% 77%
Fixtures Dimensions
Unit (mm)
Plastic cap
Plastic lens
Connectors dimensions
50
Fixture length
50
12.6
Connector
7.5
9.5
Connector
10.2
18.2
Power supply out:
Aluminum profile
64
Mounting clip dimensions
Plastic lens
12
20
8.5
11.6
Aluminum
frame
Magnet
(option)
M4 x12 hole
LED
7.4
Mounting dimension specification
Cross sectional view
Pin
Ø4.0 x 12
Mounting clip
11.7
