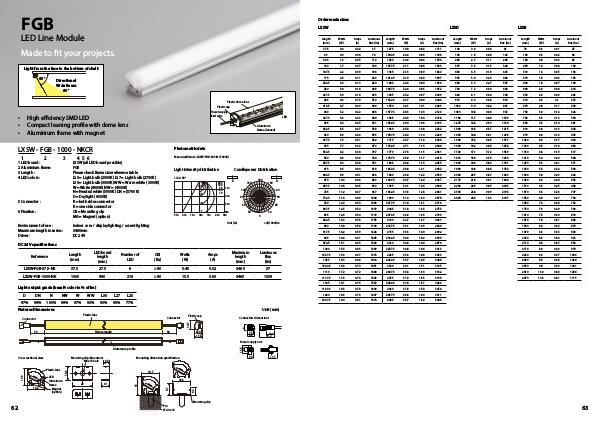

FKK Corporation LED products Catalogs FKK Corporation LED Lighting Catalog 2019 | Page 62

FGB
LED Line Module
Made to fit your projects.
Light from the face to the bottom of shelf.
60°
Directional
Wide Beam
60°
Plastic dome lens
Plastic cap
•
•
•
Power supply
lead wire
High efficiency SMD LED
Compact leaning profile with dome lens
Aluminium frame with magnet
Aluminum
frame (leaned)
LXSW - FGB - 1000 - NKCR
1
2
3
1 LED board :
2 Aluminium frame:
3 Length :
4 LED colors :

5 Connector :

6 Fixation :

Environment of use :
Maximum length in series :
Driver :
LED
Photometric data
4 5 6
Measured fixture: LXSW-FGB-505-N (5000K)
LXSW (all LED board possible)
FGB
Please check frame size reference table
L25 = Light bulb (2500K) L27 = Light bulb (2700K)
L30 = Light bulb (3000K) WW = Warm white (3500K)
W = White (4000K) NW = (4500K)
N = Neutral white (5000K) DN = (5700K)
D = Daylight (6500K)
R = both sides connector
K = one side connector
CR = Mounting clip
MG = Magnet (option)
Light Intensity distribution
Candlepower Distribution
1/2 A 54°
200
100
50 1m
20
10
2m
145
45
3m
2m
1m
20 3m
11
0m 4m
3m
1m
2m
A
150
180
120
120
50 100 150 200
90
60
90
60
30
30
0
Unit (lx)
indoor cove / display lighting / accent lighting
3465mm
DC 24V
A
150
cd/(1000)lm
DC 24V specifications
Length
(mm) LED board
length
(mm) LXSW-FGB-37.5-NK 37.5 27.5 6 > 80 0.45 0.02 3465 37
LXSW-FGB-1000-NK 1000 990 216 > 80 15.5 0.65 3465 1339
Reference
Number of
LED
CRI
(Ra)
Watts
(W)
Amps
(A)
Maximum
length
(mm)
Luminous
flux
(lm)
Light output grade (base N color in % of lm)
D DN N NW W WW L30 L27 L25
97% 99% 100% 99% 97% 93% 93% 90% 77%
Fixtures Dimensions
Unit (mm)
Plastic lens
Connector
50
Fixture length
Connectors dimensions
Connector
Plastic cap
50
30°
13.5
7.5
9.5
10.2
18.2
Power supply out:
Mounting clip dimensions
M4 x12 hole
6.3
62
14.7
14.3
9.1
Pin
Ø4.0 x 12
20
13.2
LED
Aluminum
frame
Magnet
(option)
Plastic lens
7.4
Mounting dimension specification
Cross sectional view
Aluminum profile
Mounting clip
11.7
