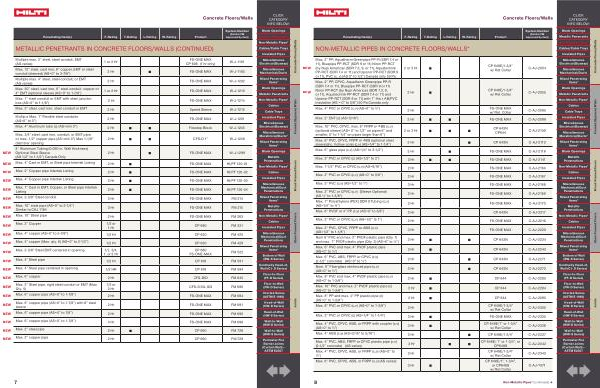

NON-METALLIC PIPES IN CONCRETE FLOORS / WALLS *
Max . 2 ” PP , Aquatherm Greenpipe PP-R ( SDR 7.4 or 11 ), Bluepipe PP-RCT ( SDR 9 or 11 ) Niron PP-RCT ( by Nupi Americas ( SDR 7.3 , 9 , or 11 ), Aquatechnik PP-RCT ( SDR 7.4 or 11 ) and Uponor PP-RCT ( SDR 9 or 11 ), PVC ( c , v ) ( AS 0 ” to 1 / 2 ”) Canada only 50 Pa
Max . 2 ” PP , CPVC , Aquatherm Greenpipe PP-R ( SDR 7.4 or 11 ), Bluepipe PP-RCT ( SDR 9 or 11 ) Niron PP-RCT ( by Nupi Americas ( SDR 7.3 , 9 , or 11 ), Aquatechnik PP-RCT ( SDR 7.4 or 11 ) and Uponor PP-RCT ( SDR 9 or 11 ) with 1 ” thick AB / PVC insulation ( AS = 0 ” to 5 / 8 ”) 50 Pa Canada only
Max . 4 ” PVC or CPVC ( c , v ) ( AS = 0 ” to ½ ”)
Max . 2 ” ENT ( c ) ( AS = 5 / 16 ”)
Max . 10 ” PVC , CPVC , max . 6 ” FRPP or ABS ( c , v ) ( optional sleeve ) ( AS = 0 ” to 1 / 2 ” on pipes 6 ” and smaller , 0 ” to 1-1 / 4 ” on pipes larger than 6 ”)
Max . 6 ” PVC , CPVC , FRPP or ABS ( optional steel sleeve )( inc . hollow core ) ( c , v ) ( AS = 1 / 4 ” to 1-1 / 4 ”)
Max . 6 ” glass pipe ( c , v ) ( AS = 1 / 4 ” to 3-1 / 2 ”)
2 or 3 Hr ◼
2 Hr ◼
3 Hr
CP 648E / 1-3 / 4 ” w / Ret Collar
CP 648E / 1-3 / 4 ” w / Ret Collar
FS-ONE MAX w / Ret . Collar
C-AJ-2054
C-AJ-2055
C-AJ-2095
3 Hr ◼ ◼ FS-ONE MAX C-AJ-2098
2 or 3 Hr ◼ ◼ ◼
CP 643N CP644
C-AJ-2109
3 Hr ◼ CP 643N C-AJ-2110
3 Hr ◼ FS-ONE MAX C-AJ-2118
|
