Framed ( Gypsum ) Walls |
CLICK CATEGORY INFO BELOW : |
||||
Penetrating Item ( s ) F-Rating T-Rating L-Rating Product |
System Number [ Similar FM Approved System ] |
Blank Openings
Metallic Penetrants
|
|||
|

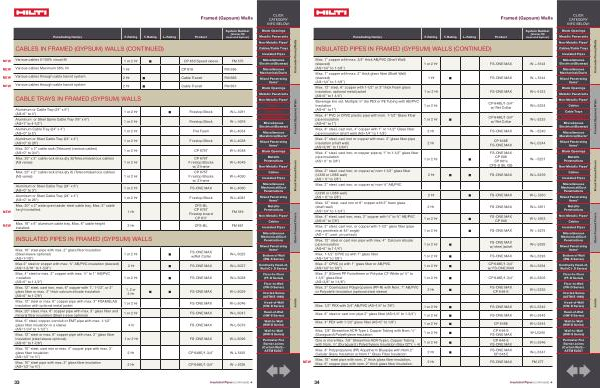

INSULATED PIPES IN FRAMED ( GYPSUM ) WALLS ( CONTINUED )
Max . 1 ” copper with max . 3 / 4 ” thick AB / PVC ( Shaft Wall ) ( sleeved ) ( AS = 1 / 4 ” to 1-1 / 8 ”)
Max . 1 ” copper with max . 2 ” thick glass fiber ( Shaft Wall ) ( sleeved ) ( AS = 1 / 4 ” to 1-1 / 8 ”)
Max . 12 ” steel , 6 ” copper with 1-1 / 2 ” or 3 ” thick Foam glass insulation , optional metal jacket ( AS = 0 ” to 1-1 / 4 ”)
Beverage line set . Multiple ½ ” dia PEX or PE Tubing with AB / PVC Insulation ( AS = 0 ” to 1 ”)
Max . 4 ” PVC or CPVC plastic pipe with nom . 1-1 / 2 ” Glass Fiber pipe insulation ( AS = 0 ” to 1 ”)
Max . 8 ” steel , cast iron , 4 ” copper with 1 ” or 1-1 / 2 ” Glass fiber pipe insulation ( shaft wall ) ( AS = 1 / 4 ” to 1-1 / 8 ’)
Max . 2 ” steel , cast iron or copper with max . 2 ” glass fiber pipe insulation ( shaft wall ) ( AS = 3 / 16 ” to 13 / 64 ”)
Max . 4 ” steel , cast iron , or copper pipe w / 1 ” to 1-1 / 2 ” glass fiber pipe insulation ( AS = 0 ” to 7 / 8 ”)
Max . 2 ” steel , cast iron , or copper w / nom 1-1 / 2 ” glass fiber ( U336 or U366 wall ) ( AS = 0 ” to 7 / 8 ”)
Max . 2 ” steel , cast iron , or copper w / nom ¾ ” AB / PVC
( U336 or U366 wall ) ( AS = 0 ” to 7 / 8 ”)
Max . 12 ” steel , cast iron or 6 ” copper with 2 ” foam glass ( shaft wall ) ( AS = 1 / 4 ” to 1-1 / 4 ”)
Max . 4 ” steel , cast iron , max . 2 ” copper with ½ ” to ¾ ” AB / PVC ( AS = 0 ” to 7 / 8 ”)
Max . 2 ” steel , cast iron , or copper with 1-1 / 2 ” glass fiber ( pipe may penetrate at 45 º angle ) ( AS = 0 ”, cont . pt contact )
Max . 12 ” steel or cast iron pipe with max . 4 ” Calcium silicate pipe insulation ( AS = 0 ” to 1-1 / 4 ”)
Max . 1-1 / 2 ” CPVC ( c ) with 1 ” glass fiber ( AS = 1 / 4 ” to 7 / 8 ”)
Max . 2 ” CPVC ( c ) with 1 ” glass fiber or AB / PVC ( AS = 1 / 4 ” to 7 / 8 ”)
Max . 2 ” ( 63mm ) PP Fusiotherm or Polystar CT-White w / ½ ” to 1-1 / 2 ” glass fiber ( AS = 3 / 8 ” to 1-1 / 8 ”)
Max . 3 ” Cosmoplast Polypropylene ( PP-R ) with Nom . 1 ” AB / PVC or Polyolefin Insulation ( optional steel sleeve )
1 or 2 Hr FS-ONE MAX W-L-5143
1 Hr ◼ FS-ONE MAX W-L-5144
1 or 2 Hr FS-ONE MAX W-L-5223
1 or 2 Hr
1 or 2 Hr ◼
CP 648E / 1-3 / 4 ” w / Ret Collar
CP 648E / 1-3 / 4 ” w / Ret Collar
W-L-5224
W-L-5225
2 Hr FS-ONE MAX W-L-5240
2 Hr
1 or 2 Hr ◼
CP 648E FS-ONE MAX
FS-ONE MAX CP 606 CP 601s CFS-S SIL GG
W-L-5244
W-L-5257
2 Hr ◼ ◼ FS-ONE MAX W-L-5259
2 Hr ◼ FS-ONE MAX W-L-5260
2 Hr FS-ONE MAX W-L-5261
1 or 2 Hr ◼
FS-ONE MAX CP 606
W-L-5263
1 or 2 Hr ◼ FS-ONE MAX W-L-5274
1 or 2 Hr ◼
FS-ONE MAX w / steel jacket
W-L-5292
1 or 2 Hr ◼ FS-ONE MAX W-L-5293
1 or 2 Hr ◼
CP 648E / 1-3 / 4 ” w / FS-ONE MAX
W-L-5294
1 or 2 Hr ◼ CP 648E / 1-3 / 4 ” W-L-5303
2 Hr ◼
FS-ONE MAX CP 648-E
W-L-5335
|
Non-Metallic Pipes *
Cables / Cable Trays
Insulated Pipes
Miscellaneous Electrical ( Busway )
Miscellaneous Mechanical / Ducts
Mixed Penetrating Items *
Blank Openings
Metallic Penetrants
Non-Metallic Pipes *
Cables
Cable Trays
Insulated Pipes
Miscellaneus Electrical ( Busway )
Miscellaneous Mecahnical / Ducts *
Mixed Penetrating Items *
Blank Openings
Metallic Penetrations
Non-Metallic Pipes *
Cables
Insulated Pipes
Miscellaneous Mechanical / Duct Penetrations
Mixed Penetrating Items *
Metallic Penetrations
Non-Metallic Pipes *
Cables
Insulated Pipes
Miscellaneous Mechanical / Duct Penetrations
Mixed Penetrating Items *
Bottom of Wall ( BW-S Series )
Continuity Head-of- Wall ( CJ-D Series )
Floor-to-Floor ( FF-D Series )
Floor-to-Wall ( FW-D Series )
Intertek Series ( ASTM E 1966 )
|
Steel-Framed Floors Wood-Framed Floors Framed ( Gypsum ) Walls
Concrete Floors / Walls
|
|||
|
Max . 1 / 2 ” PEX with 3 / 4 ” AB / PVC ( AS = 1 / 4 ” to 7 / 8 ”)
Max . 6 ” steel or cast iron pipe 3 ” glass fiber ( AS = 1 / 4 ” to 1-3 / 4 ”)
|
1 or 2 Hr ◼ FS-ONE MAX W-L-5342
1 or 2 Hr ◼ FS-ONE MAX W-L-5343
|
Head-of-Wall ( HW-D Series )
Head-of-Wall ( HW-S Series )
|
Joints |
||
Max . 4 ” PEX with 1-1 / 2 ” glass fiber ( AS = 0 ” to 1 / 8 ”) |
1 or 2 Hr ◼ CP 648E W-L-5344 |
Wall-to-Wall ( WW-D Series ) |
|||
NEW |
Max . 7 / 8 ” Streamline ACR-Type L Copper Tubing with Nom . ½ ” ( Duraguard ) Polyethylene Insulation
One or more Max . 7 / 8 ” Streamline ACR-Type L Copper Tubing with Nom . ½ ” ( Duraguard ) Polyethylene Insulation ( Max QTY . = 4 )
Max . 8 ” Polypropylene ( PP ) Aquatherm Bluepipe with Nom . 2 ” Cellular Glass Insulation or Nom . 1 ” Glass Fiber Insulation
Max . 10 ” steel pipe with nom . 2 ” thick glass fiber insulation , Max . 6 ” copper pipe with nom . 2 ” thick glass fiber insulation .
|
1 or 2 Hr ◼
1 or 2 Hr ◼
2 Hr ◼
CP 648-E FS-ONE MAX
CP 648-E FS-ONE MAX
FS-ONE MAX CP 648 E
W-L5345
W-L-5346
W-L-5347
2 Hr FS-ONE MAX FM 277
|
Wall-to-Wall ( WW-S Series )
Perimeter Fire Barrier Joints ( Curtain Wall ) – ASTM E2307
|
||
