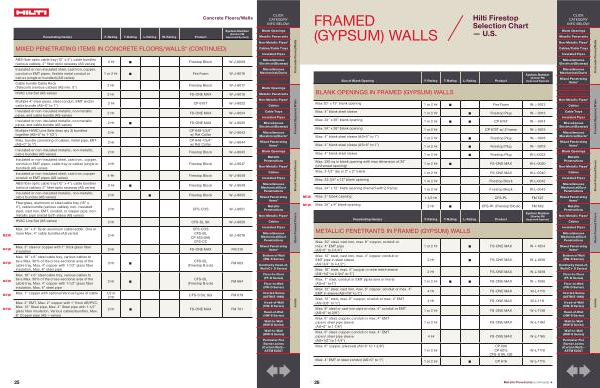

FRAMED ( GYPSUM ) WALLS
Hilti Firestop Selection Chart — U . S .
Size of Blank Penetrating Opening Item ( s ) F-Rating T-Rating L-Rating Product
BLANK OPENINGS IN FRAMED ( GYPSUM ) WALLS
Max 30 ” x 15 ” blank opening Max . 4 ” blank steel sleeve Max . 24 ” x 36 ” blank opening Max . 24 ” x 36 ” blank opening Max . 4 ” blank steel sleeve ( AS = 0 ” to 1 ”) Max . 4 ” blank steel sleeve ( AS = 0 ” to 1 ”) Max . 4 ” blank steel sleeve
Max . 240 sq in blank opening with max dimension of 20 ” ( unframed opening )
Max . 2-1 / 2 ” dia or 2 ” x 2 ” blank
Max . 22-3 / 4 ” x 12 ” blank opening Max . 24 ” x 12 ” blank opening ( framed with Z-frame ) Max . 2 ” blank opening Max . 24 ” x 9 ” blank opening
Framed ( Gypsum ) Walls
System Number [ Similar FM Approved System ]
1 or 2 Hr ◼ Fire Foam W-L-0012 1 or 2 Hr ◼ Firestop Plug W-L-0013 1 or 2 Hr ◼ ◼ CP 675T W-L-0014 1 or 2 Hr CP 675T w / Z frame W-L-0015 1 or 2 Hr ◼ Firestop Plug W-L-0018 1 or 2 Hr ◼ Firestop Plug W-L-0019 1 or 2 Hr ◼ Firestop Plug W-L-0023
1 or 2 Hr ◼ FS-ONE MAX W-L-0030
1 or 2 Hr FS-ONE MAX W-L-0040 1 or 2 Hr Firestop Block W-L-0042 1 or 2 Hr Firestop Block W-L-0043 1-1 / 2 Hr CFS-PL FM 527
2 Hr ◼ CFS-BL ( Firestop Block ) FM 662
Penetrating Item ( s ) F-Rating T-Rating L-Rating Product
METALLIC PENETRANTS IN FRAMED ( GYPSUM ) WALLS
Max . 30 ” steel , cast iron , max . 6 ” copper , conduit or max . 4 ” EMT pipe ( AS = 0 ” to 2-1 / 4 ”)
Max . 12 ” steel , cast iron , max . 4 ” copper , conduit or EMT pipe in steel sleeve ( AS = 3 / 4 ” to 4-1 / 2 ”)
Max . 16 ” steel , max . 4 ” copper , in wire mesh sleeve ( AS = 1 / 2 ” to 2-3 / 4 ” or 3 ”)
Max . 1 ” steel , conduit or EMT pipes ( one or more ) ( AS = 0 ” to 1 ”)
Max . 12 ” steel , cast iron , max . 6 ” copper , conduit or max . 4 ” EMT in sleeve ( AS = 7 / 8 ” to 1 ”)
Max . 12 ” steel , max . 6 ” copper , conduit or max . 4 ” EMT ( AS = 3 / 8 ” to ½ ”)
Max . 8 ” steel or cast iron pipe or max . 4 ” conduit or EMT ( AS = 0 ” to 3 / 8 ”)
Max . 6 ” steel , copper , conduit or max . 4 ” EMT pipe in steel pipe sleeve ( AS = 0 ” to 1-7 / 8 ”)
Max . 6 ” steel , copper , conduit or max . 4 ” EMT pipe in steel pipe sleeve ( AS = 1 / 2 ” to 1-1 / 4 ”)
Max . 6 ” copper , ( sleeved ) ( AS = 0 ” to 1-3 / 8 ”)
Max . 4 ” EMT or steel conduit ( AS = 0 ” to 1 ”)
System Number [ Similar FM Approved System ]
1 or 2 Hr ◼ FS-ONE MAX W-L-1054
2 Hr ◼ FS-ONE MAX W-L-1056
2 Hr FS-ONE MAX W-L-1058
1 or 2 Hr ◼ ◼ FS-ONE MAX W-L-1095
4 Hr FS-ONE MAX W-L-1110
4 Hr FS-ONE MAX W-L-1111
1 or 2 Hr FS-ONE MAX W-L-1148
1 or 2 Hr FS-ONE MAX W-L-1164
4 Hr FS-ONE MAX W-L-1165
1 or 2 Hr
CP 606 CP 601s CFS-S SIL GG
W-L-1170
1 or 2 Hr ◼ CP 618 W-L-1175
