Penetrating Item ( s ) F-Rating T-Rating L-Rating W-Rating Product |
System Number [ Similar FM Approved System ] |
Blank Openings
Metallic Penetrants
|
||
|
NEW
NEW
NEW
NEW
NEW
|

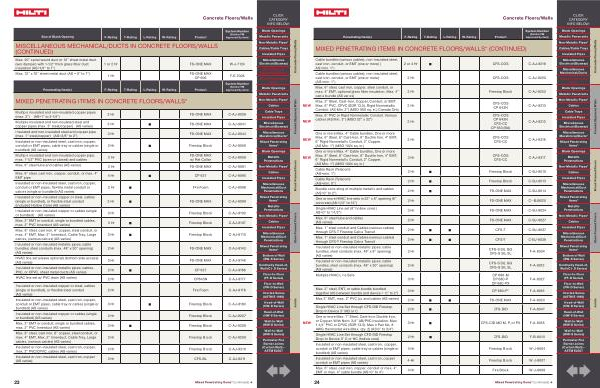

MIXED PENETRATING ITEMS IN CONCRETE FLOORS / WALLS * ( CONTINUED )
Cable bundles ( various cables ), non-insulated steel , cast iron , conduit , or EMT ( one or more ) ( AS = min . 1 ”)
Cable bundles ( various cables ), non-insulated steel , cast iron , conduit , or EMT ( one or more ) ( AS = min . 1 ”)
Max . 6 ” steel , cast iron , copper , steel conduit , or max . 4 ” EMT , optional glass fiber insulation , Max . 4 ” cable bundle ( AS varies )
Max . 2 ” Steel , Cast-Iron , Copper , Conduit , or EMT . Max . 6 ” PVC , CPVC ( SDR 13.5 ), Rigid Nonmetallic Conduit . ( AS Min . 2 ”) ( MSO 900 sq . in .) Canada Only
Max . 6 ” PVC or Rigid Nonmetallic Conduit . Various cables ( AS Min . 3 ”) ( MSO 32 ” x 32 ”)
One or more Max . 4 ” Cable bundles , One or more Max . 6 ” Steel , 6 ” Cast-Iron , 6 ” Ductile Iron , 4 ” EMT , 6 ” Rigid Nonmetallic Conduit , 2 ” Copper . ( AS Min . 1 ”) ( MSO 1024 sq . in .)
One or more Max . 4 ” Cable bundles , One or more Max . 8 ” Steel , 8 ” Cast-Iron , 8 ” Ductile Iron , 4 ” EMT , 6 ” Rigid Nonmetallic Conduit , 2 ” Copper . ( AS Min . 1 ”) ( MSO 1024 sq . in .)
Cable Rack ( Telecom ) ( AS = min . 1 ”)
Cable Rack ( Telecom ) ( AS = min . 0 ”)
Bundle consisting of multiple metallic and cables ( AS = 0 ” to 2 ”)
One or more HVAC line sets in 32 ” x 8 ” opening ( 6 ” concrete ) ( AS = 1 / 2 ” to 12 ”)
Single HVAC Line set ( 8 ” hollow core ) ( AS = 0 ” to 1-1 / 2 ”)
Max . 6 ” steel tube and cables ( AS varies )
Max . 1 ” steel conduit and Cables ( various cables ) through CFS-T Firestop Cable Transit
Max . 1 ” steel conduit and Cables ( various cables ) through CFS-T Firestop Cable Transit
Insulated or non-insulated metallic pipes ; cable bundles ; steel conduits ( max . 48 ” x 8 ” opening ) ( AS varies )
Insulated or non-insulated metallic pipes ; cable bundles ; steel conduits ( max . 48 ” x 30 ” opening ) ( AS varies )
Multiple HVAC Line Sets
Max . 2 ” steel , ENT , or cable bundle bundled together ( AS between bundle and device = ½ ” to 2 ”)
Max 3 ” EMT , max . 2 ” PVC ( c ), and cables ( AS varies )
Single HVAC Line Set through CFS-DID Firestop Drop In Device 3 ” MD or C
One or more Max . 1 ” Steel , Cast-Iron , Ductile Iron , or Copper . With Nom . 3 / 4 ” AB / PVC insulation . Max 1-1 / 4 ” PVC or CPVC ( SDR 13.5 ). Max 4 Pair No . 8 AWG thermostat wire ( Max . qty . 2 ) ( AS 0 ” to 3 / 4 ”)
Single HVAC Line Set through CFS-DID Firestop Drop-In Device 3 ” C or HC ( hollow core )
Insulated or non-insulated steel , cast iron , copper , conduit or EMT pipes , cable tray or cables ( single or bundled ) ( AS varies )
Insulated or non-insulated steel , cast iron , copper conduit or EMT pipes ( AS varies )
Max . 6 ” steel , cast iron , copper , conduit or max . 4 ” EMT or max . 4 ” cable bundle ( AS = 0 ” to 4 ”)
2 or 4 Hr ◼ CFS-COS C-AJ-8218
2 Hr CFS-COS C-AJ-8250
3 Hr Firestop Block C-AJ-8252
2 Hr
2 Hr
3 Hr
3 Hr
CFS-COS CP 643N
CFS-COS CP 643N CFS-CC CP 653 ( BA )
CFS-COS CFS-CC
CFS-COS CFS-CC
C-AJ-8310
C-AJ-8313
C-AJ-8316
C-AJ-8317
2 Hr ◼ Firestop Block C-BJ-8010
2 Hr ◼ Firestop Block C-BJ-8013
2 Hr ◼ FS-ONE MAX C-BJ-8014
2 Hr FS-ONE MAX C--BJ8020
3 Hr FS-ONE MAX C-BJ-8024
2 Hr FS-ONE MAX C-BJ-8027
2 Hr ◼ ◼ CFS-T C-BJ-8037
2 Hr ◼ ◼ CFS-T C-BJ-8038
2 Hr
2 Hr
3 Hr
CFS-S SIL GG CFS-S SIL SL
CFS-S SIL GG CFS-S SIL SL
CP 680-M CP 680-P CP 680-PX
F-A-8004
F-A-8012
F-A-8027
3 Hr CP 680-P ” F-A-8016
2 Hr ◼ ◼ FS-ONE MAX F-A-8023
2 Hr ◼ CFS-DID F-A-8047
3 Hr ◼ CFS-CID MD M , P , or PX F-A-8055
2 Hr ◼ CFS-DID F-B-8010
4 Hr Firestop Block W-J-8004
4-Hr Firestop Block W-J-8007
4 Hr Fire Block W-J-8008
|
