Penetrating Item ( s ) F-Rating T-Rating L-Rating W-Rating Product

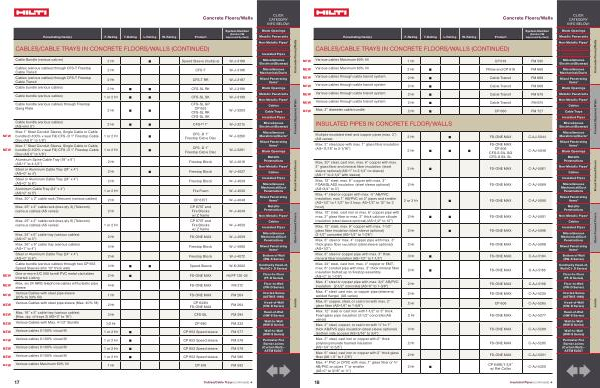

CABLES / CABLE TRAYS IN CONCRETE FLOORS / WALLS ( CONTINUED )
Concrete Floors / Walls
System Number [ Similar FM Approved System ]
NEW Various cables Maximum 60 % fill 1 Hr CP 618 FM 595 NEW Various cables Maximum 60 % fill 2 Hr ◼ Pillow and CP 618 FM 660 NEW Various cables through cable transit system 2 Hr ◼ Cable Transit FM 668 NEW Various cables through cable transit system 2 Hr ◼ Cable Transit FM 669 NEW Various cables through cable transit system 2 Hr ◼ Cable Transit FM 670 NEW Various cables through cable transit system 2 Hr ◼ Cable Transit FM 674 NEW Max . 2 ” diameter cable bundle 2 Hr ◼ CP 660 FM 727
INSULATED PIPES IN CONCRETE FLOOR / WALLS
Multiple insulated steel and copper pipes ( max . 3 ”) ( AS varies )
Max . 2 ” steel pipe with max . 1 ” glass fiber insulation ( AS = 11 / 16 ” to 3-1 / 16 ”)
Max . 20 ” steel , cast iron , max . 6 ” copper with max . 3 ” glass fiber and mineral fiber insulation ( steel sleeve optional ) ( AS = 1 ” to 2-1 / 4 ” no sleeve ) ( AS = 1 ” to 2-1 / 4 ” with sleeve )
Max . 12 ” steel , max . 6 ” copper with max . 3 ” FOAMGLASS insulation ( steel sleeve optional ) ( AS = 3 / 4 ” to 3 ”)
Max . 4 ” steel or copper with max . ¾ ” AB / PVC insulation ; max 1 ” AB / PVC on 3 ” pipes and smaller ( AS = 1 / 2 ” to 1-1 / 2 ” for 3 hour , AS = 1 / 2 ” to 12 ” for 2 hour )
Max . 12 ” steel , cast iron or max . 6 ” copper pipe with max . 2 ” glass fiber or max . 2 ” thick calcium silicate insulation ( steel sleeve optional ) ( AS = 1 / 2 ” to 12 ”)
Max . 12 ” steel , max . 6 ” copper with max . 1-1 / 2 ” glass fiber insulation ( steel sleeve optional ) ( 2-1 / 2 ” concrete ) ( AS = 1 / 2 ” to 1-7 / 8 ”)
Max . 6 ” steel or max . 4 ” copper pipe with max . 3 ” thick glass fiber insulation ( steel sleeve optional ) ( AS = 1 / 2 ”)
Max . 6 ” steel or copper pipe with max . 3 ” thick mineral fiber insulation ( AS = 1 / 2 ” to 1-1 / 2 ”)
Max . 24 ” steel , cast iron , max . 4 ” copper or EMT , max . 6 ” conduit pipe with max . 3 ” thick mineral fiber insulation butted up to firestop assembly ( AS = 0 ” to 1-7 / 8 ”)
Max . 4 ” steel or copper pipe with max . 3 / 4 ” AB / PVC insulation ( 2-1 / 2 ” concrete ) ( AS = 0 ” to 1-3 / 8 ”)
Max . 4 ” steel , cast iron , or copper pipe ( sleeve w / welded flange ) ( AS varies )
Max . 6 ” copper , steel , or cast iron with max . 2 ” glass fiber ( AS = 1 / 4 ” to 1-5 / 8 ”)
Max . 12 ” steel or cast iron with 1-1 / 2 ” or 3 ” thick Foamglass pipe insulation ( 2-1 / 2 ” concrete ) ( AS varies )
Max . 2 ” steel , copper , or cast iron with ½ ” to 1 ” thick AB / PVC pipe insulation ( steel sleeve optional ) ( bottom side access ) ( AS = 3 / 16 ” to 3 / 4 ”)
Max . 3 ” steel , cast iron or copper with 2 ” thick polyisocyanurate foamed insulation ( AS = 1 / 4 ” to 5 / 8 ”)
Max . 6 ” steel , cast iron or copper with 2 ” thick glass fiber ( AS = 0 ” to 1-7 / 8 ”)
Max . 4 ” PVC or CPVC with max . 1 ” glass fiber or ¾ ” AB / PVC on pipes 1 ” or smaller ( AS = 0 ” to 3 / 16 ” or ½ ”)
3 Hr ◼ FS-ONE MAX C-AJ-5044
2 Hr ◼ ◼ ◼
FS-ONE MAX CP 606 CFS-S SIL GG CFS-S SIL SL
C-AJ-5048
3 Hr ◼ FS-ONE MAX C-AJ-5061
2 Hr FS-ONE MAX C-AJ-5069
2 or 3 Hr ◼ FS-ONE MAX C-AJ-5090
2 Hr ◼ ◼ FS-ONE MAX C-AJ-5091
2 Hr ◼ FS-ONE MAX C-AJ-5096
2 Hr FS-ONE MAX C-AJ-5098
3 Hr ◼ FS-ONE MAX C-AJ-5184
3 Hr ◼ FS-ONE MAX C-AJ-5185
2 Hr FS-ONE MAX C-AJ-5198
2 Hr FS-ONE MAX C-AJ-5230
2 Hr CP 606 C-AJ-5265
2 Hr FS-ONE MAX C-AJ-5277
3 Hr FS-ONE MAX C-AJ-5289
2 Hr FS-ONE MAX C-AJ-5295
2 Hr FS-ONE MAX C-AJ-5301
2 Hr ◼
CP 648E / 1-3 / 4 ” w / Ret Collar
C-AJ-5320
