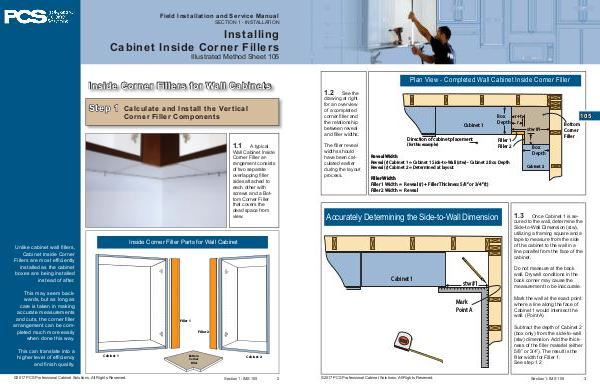

Plan View - Completed Wall Cabinet Inside Corner Filler
1.2
See the
drawing at right
for an overview
of a completed
corner fi ller and
the relationship
between reveal
and fi ller widths.
Cabinet 1
stw #1
Direction of cabinet placement
The fi ller reveal
widths should
have been cal-
culated earlier
during the layout
process.
105
Box
r+t
Depth r
(for this example)
r
Filler 1
Filler 2
Bottom
Corner
Filler
Box
Depth
Reveal Width
Reveal (r) Cabinet 1 = Cabinet 1 Side-to-Wall (stw) - Cabinet 2 Box Depth
Reveal (r) Cabinet 2 = Determined at layout
Cabinet 2
Filler Width
Filler 1 Width = Reveal (r) + Filler Thickness 5/8” or 3/4” (t)
Filler 2 Width = Reveal
Accurately Determining the Side-to-Wall Dimension
Cabinet 1
stw #1
Mark
Point A
1.3
Once Cabinet 1 is se-
cured to the wall, determine the
Side-to-Wall Dimension (stw),
utilizing a framing square and a
tape to measure from the side
of the cabinet to the wall in a
line parallel from the face of the
cabinet.
Do not measure at the back
wall. Drywall conditions in the
back corner may cause the
measurement to be inaccurate.
Mark the wall at the exact point
where a line along the face of
Cabinet 1 would intersect the
wall. (Point A)
Subtract the depth of Cabinet 2
(box only) from the side-to-wall
(stw) dimension. Add the thick-
ness of the fi ller material (either
5/8” or 3/4”). The result is the
fi ller width for Filler 1.
See step 1.2
