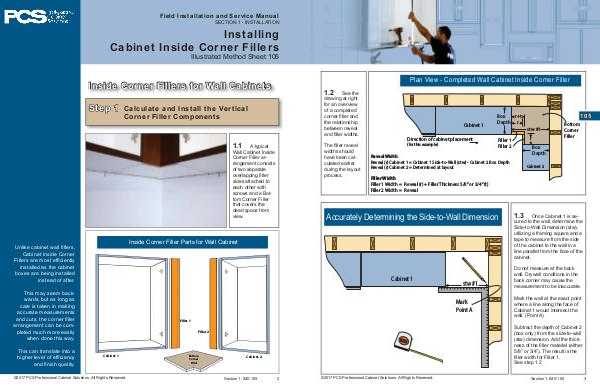

Field Installation and Service Manual IMS105 | Page 2

Field Installation and Service Manual
SECTION 1 - INSTALLATION
Installing
Cabinet Inside Corner Fillers
Illustrated Method Sheet 105
Inside Corner Fillers for Wall Cabinets
Step 1
Calculate and Install the Vertical
Corner Filler Components
1.1
A typical
Wall Cabinet Inside
Corner Filler ar-
rangement consists
of two separate
overlapping fi ller
sides attached to
each other with
screws and a Bot-
tom Corner Filler
that covers the
dead space from
view.
Inside Corner Filler Parts for Wall Cabinet
Unlike cabinet wall fi llers,
Cabinet Inside Corner
Fillers are most effi ciently
installed as the cabinet
boxes are being installed
instead of after.
x
This may seem back-
wards, but as long as
care is taken in making
accurate measurements
and cuts, the corner fi ller
arrangement can be com-
pleted much more easily
when done this way.
This can translate into a
higher level of effi ciency
and fi nish quality.
x
x
x
Filler 1
x
Filler 2
x
Cabinet 1
©2017 PCS Professional Cabinet Solutions. All Rights Reserved.
x
x
Bottom
Corner
Filler
Cabinet 2
Section 1: IMS 105
2
