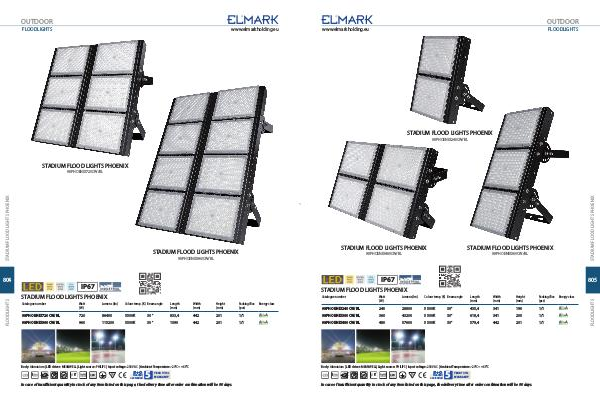

ELMARK Lighting 2019 Lighting_2019 | Página 405

OUTDOOR
www.elmarkholding.eu
FLOODLIGHTS
STADIUM FLOOD LIGHTS PHOENIX
98PHOENIX240CW/BL
STADIUM FLOOD LIGHTS PHOENIX STADIUM FLOOD LIGHTS PHOENIX
98PHOENIX480CW/BL 98PHOENIX360CW/BL
IP67
805
STADIUM FLOOD LIGHTS PHOENIX
Watt
(W) Lumens (lm) Colour temp. (K) Beam angle Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
98PHOENIX240CW/BL 240 28800 5500К 30° 435,4 341 190 1/1
98PHOENIX360CW/BL 360 43200 5500К 30° 618,4 341 200 1/1
98PHOENIX480CW/BL 480 57600 5500К 30° 579,4 442 201 1/1
Body: Aluminium | LED driver: MEANWELL| Light source: PHILIPS | Input voltage: 230V AC | Ambient Temperature: -20°C÷ +65°C
5
>20000
67
5+0
standard
+extended
5
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
Energy class
Catalogue number
