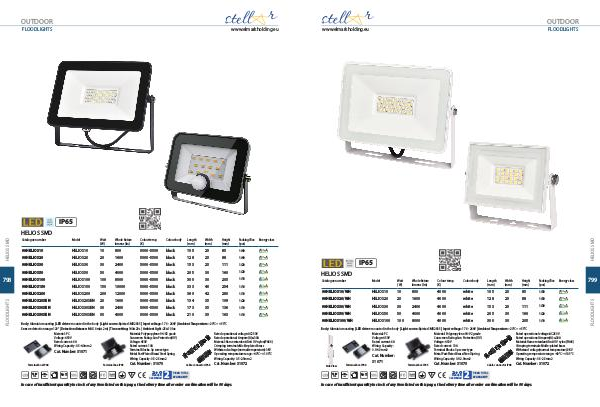

ELMARK Lighting 2019 Lighting_2019 | Page 398

OUTDOOR
FLOODLIGHTS
www.elmarkholding.eu
IP65
HELIOS SMD
798
Catalogue number Model Watt
(W) Whole fixture
lumens (lm) Colour temp.
(K) Colour body Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
98HELIOS10 HELIOS10 10 800 5000-5500 black 105 25 85 1/40
98HELIOS20 HELIOS20 20 1600 5000-5500 black 128 25 88 1/40
98HELIOS30 HELIOS30 30 2400 5000-5500 black 153 25 111 1/20
98HELIOS50 HELIOS50 50 4000 5000-5500 black 205 30 160 1/20
98HELIOS100 HELIOS100 100 8000 5000-5500 black 300 30 205 1/10
98HELIOS150 HELIOS150 150 10000 5000-5500 black 333 40 254 1/10
98HELIOS200 HELIOS200 200 12000 5000-5500 black 360 42 280 1/10
98HELIOS20SEN HELIOS20SEN 20 1600 5000-5500 black 134 35 109 1/20
98HELIOS30SEN HELIOS30SEN 30 2400 5000-5500 black 173 35 136 1/10
98HELIOS50SEN HELIOS50SEN 50 4000 5000-5500 black 210 35 163 1/10
Energy class
Body: Aluminium casting | LED driver: mounted in the body | Light source: Epistar SMD2835 | Input voltage: 176 - 264V | Ambient Temperature: -20°C÷ +55°C
Sensor: detection range:120° | Detection distance: MAX 8 m(±2 m) | Time setting: 140±20 s | Ambient light: 25±10 lux
Material: PC
Material: Polypropylene 94-V2 grade
Voltage: 450V
Sunscreen Rating:Sun Protection(UV)
Rated current: 6A
Voltage: 450V
Wiring Capacity: 0.5-4.0mm2
Rated current: 10A
Terminal Blocks: 3p screw type
Cat. Number: 31071
Metal Part:Plated Brass/Steel Spring
Wiring Capacity: 0.5-2.5mm2
Terminal box IP44
50/60
Hz
120
Terminal box IP65
Ra>70
Cat. Number: 31070
2+0
standard
+extended
Rated operational voltage:AC250V
Rated operational Ampere(A):≤30A
Material: flame retardant/Anti UV nylon(PA66)
Crimping terminals:Nickle-plated brass
Withstand voltage(normal temperature):3KV
Operating remperature range: -40°C~+105°C
Wiring Capacity: 0.5-2.5mm2
Cable connector IP68
2
Cat. Number: 31072
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
