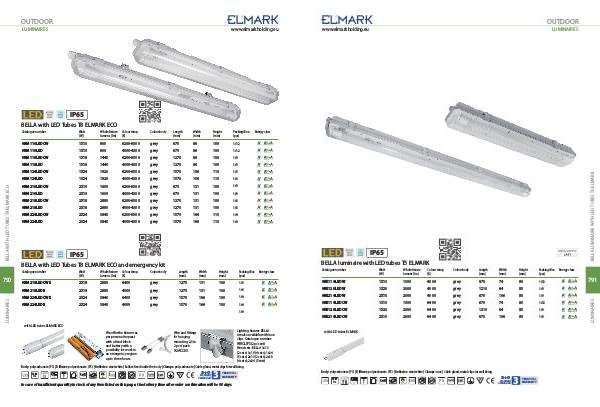

ELMARK Lighting 2019 Lighting_2019 | Page 391

OUTDOOR
LUMINAIRES
www.elmarkholding.eu
IP65
BELLA luminaire with LED tubes Т5 ЕLMARK
Watt
(W) Whole fixture
lumens (lm) Colour temp.
(K) Colour body Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
9BE114LEDW 1X10 1000 4000 grey 670 74 80 1/12
9BE128LEDW 1X20 2000 4000 grey 1210 64 85 1/9
9BE214LEDW 2X10 2000 4000 grey 670 106 80 1/9
9BE114LEDCW 1X10 1000 6400 grey 670 74 80 1/12
9BE128LEDCW 1X20 2000 6400 grey 1210 64 85 1/9
9BE214LEDCW 2X10 2000 6400 grey 670 106 80 1/9
with LED tubes ELMARK
Body: polycarbonate (PC) | Diffuser: polycarbonate (PC) | Reflector: steel white | Clamps: inox | Cable gland, metal clips for wall fixing.
50/60
Hz
T5
Ra>80
>20000
3
3+0
standard
+extended
3
YEAR TOTAL
WARRANTY
Energy class
791
Catalogue number
