OUTDOOR
FACADE AND GROUND
www.elmarkholding.eu

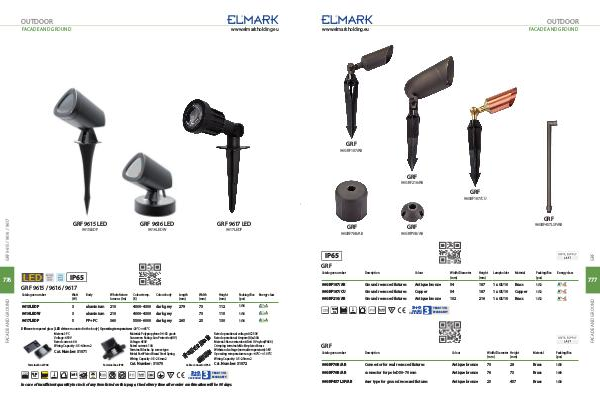

GRF 9615 LED GRF 9616 LED GRF 9617 LED
9615LEDP 9616LEDW 9617LEDP
IP65
776
GRF 9615 / 9616 / 9617
Catalogue number Watt
(W) Body Whole fixture
lumens (lm) Colour temp.
(K) Colour body Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
9615LEDP 3 aluminium 210 4000-4300 dark grey 279 73 112 1/16
9616LEDW 3 aluminium 210 4000-4300 dark grey 73 110 1/16
9617LEDP 5 PP+PC 360 5500-6000 dark grey 25 130 1/16
265
Diffuser: tempered glass | LED driver: mounted in the body | Operating temperature: -20°C÷+65°C
Material: PC
Material: Polypropylene 94-V2 grade
Voltage: 450V
Sunscreen Rating:Sun Protection(UV)
Rated current: 6A
Voltage: 450V
Wiring Capacity: 0.5-4.0mm2
Rated current: 10A
Terminal Blocks: 3p screw type
Cat. Number: 31071
Metal Part:Plated Brass/Steel Spring
Wiring Capacity: 0.5-2.5mm2
Terminal box IP44
50/60
Hz
Terminal box IP65
Ra>80
>15000
3
Cat. Number: 31070
Energy class
Rated operational voltage:AC250V
Rated operational Ampere(A):≤30A
Material: flame retardant/Anti UV nylon(PA66)
Crimping terminals:Nickle-plated brass
Withstand voltage(normal temperature):3KV
Operating remperature range: -40°C~+105°C
Wiring Capacity: 0.5-2.5mm2
Cable connector IP68
3+0
standard
+extended
3
Cat. Number: 31072
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
