INDOOR
www.elmarkholding.eu
LUMINAIRES
IP21

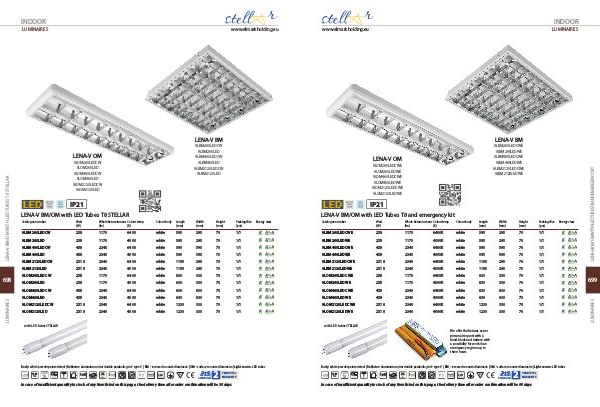

LENA-V BM/OM with LED Tubes T8 and emergency kit
Catalogue number Watt
(W) Whole fixture lumens Colour temp.
(lm)
(K) Colour body Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
9LBM260LEDCWE 2X9 1170 6400K white 595 295 70 1/1
9LBM260LEDWE 2X9 1170 4000K white 595 295 70 1/1
9LBM460LEDCWE 4X9 2340 6400K white 595 595 70 1/1
9LBM460LEDWE 4X9 2340 4000K white 595 595 70 1/1
9LBM2120LEDCWE 2X18 2340 6400K white 1195 295 70 1/1
9LBM2120LEDWE 2X18 2340 4000K white 1195 295 70 1/1
9LOM260LEDCWE 2X9 1170 6400K white 630 330 70 1/1
9LOM260LEDWE 2X9 1170 4000K white 630 330 70 1/1
9LOM460LEDCWЕ 4X9 2340 6400K white 630 630 70 1/1
9LOM460LEDWE 4X9 2340 4000K white 630 630 70 1/1
9LOM2120LEDCWE 2X18 2340 6400K white 1230 330 70 1/1
9LOM2120LEDWE 2X18 2340 4000K white 1230 330 70 1/1
Energy class
with LED tubes STELLAR
We offer the fixtures as per
personal request with a
fixed block and battery with
a possibility for work in an
emergency regime up to
three hours.
Body: white powder painted steel | Reflector: aluminium mirror double parabolic grid - type V | BM - recessed mounted luminaire | OM - surface mounted luminaire | Light source: LED tubes
50/60
Hz
Ra>80
>20000
3
2+0
standard
+extended
2
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
699
LENA-V OM
9LOM260LEDCWE
9LOM260LEDWE
9LOM460LEDCWЕ
9LOM460LEDWE
9LOM2120LEDCWE
9LOM2120LEDWE
LENA-V BM
9LBM260LEDCWE
9LBM260LEDWE
9LBM460LEDCWE
9LBM460LEDWE
9LBM2120LEDCWE
9LBM2120LEDWE
