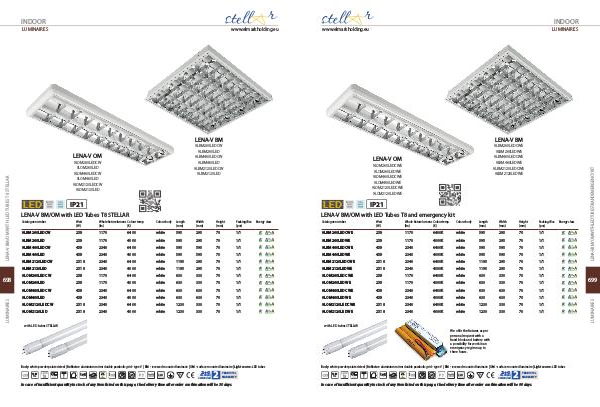

ELMARK Lighting 2019 Lighting_2019 | Page 298

INDOOR
LUMINAIRES
www.elmarkholding.eu
LENA-V BM
9LBM260LEDCW
9LBM260LED
9LBM460LEDCW
9LBM460LED
9LBM2120LEDCW
9LBM2120LED
LENA-V OM
698
9LOM260LEDCW
9LOM260LED
9LOM460LEDCW
9LOM460LED
9LOM2120LEDCW
9LOM2120LED
IP21
LENA-V BM/OM with LED Tubes T8 STELLAR
Catalogue number Watt
(W) Whole fixture lumens Colour temp.
(lm)
(K) Colour body Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
9LBM260LEDCW 2X9 1170 6400 white 595 295 70 1/1
9LBM260LED 2X9 1170 4000 white 595 295 70 1/1
9LBM460LEDCW 4X9 2340 6400 white 595 595 70 1/1
9LBM460LED 4X9 2340 4000 white 595 595 70 1/1
9LBM2120LEDCW 2X18 2340 6400 white 1195 295 70 1/1
9LBM2120LED 2X18 2340 4000 white 1195 295 70 1/1
9LOM260LEDCW 2X9 1170 6400 white 630 330 70 1/1
9LOM260LED 2X9 1170 4000 white 630 330 70 1/1
9LOM460LEDCW 4X9 2340 6400 white 630 630 70 1/1
9LOM460LED 4X9 2340 4000 white 630 630 70 1/1
9LOM2120LEDCW 2X18 2340 6400 white 1230 330 70 1/1
9LOM2120LED 2X18 2340 4000 white 1230 330 70 1/1
Energy class
with LED tubes STELLAR
Body: white powder painted steel | Reflector: aluminium mirror double parabolic grid - type V | BM - recessed mounted luminaire | OM - surface mounted luminaire | Light source: LED tubes
50/60
Hz
Ra>80
>20000
3
2+0
standard
+extended
2
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 30 days.
