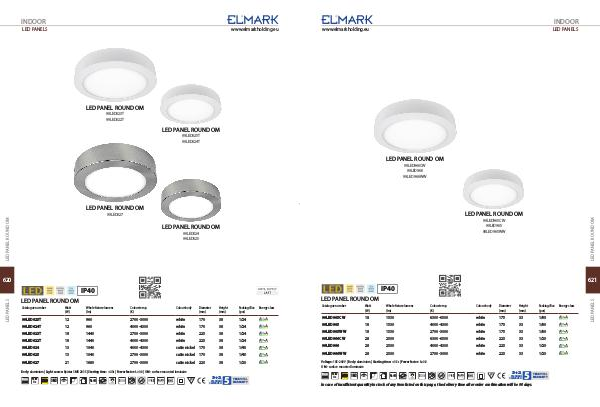

ELMARK Lighting 2019 Lighting_2019 | Page 220

INDOOR
LED PANELS
www.elmarkholding.eu
LED PANEL ROUND OM
99LED623T
99LED622T
LED PANEL ROUND OM
99LED625T
99LED624T
LED PANEL ROUND OM
99LED627
LED PANEL ROUND OM
99LED624
99LED625
620
IP40
LED PANEL ROUND OM
Catalogue number Watt
(W) Whole fixture lumens
(lm) Colour temp.
(K) Colour body Diameter
(mm) Height
(mm) Packing/Box
(pcs)
99LED625T 12 960 2700-3000 white 170 38 1/24
99LED624T 12 960 4000-4300 white 170 38 1/24
99LED623T 18 1440 2700-3000 white 225 38 1/24
99LED622T 18 1440 4000-4300 white 225 38 1/24
99LED624 13 1040 4000-4300 satin nickel 170 38 1/40
99LED625 13 1040 2700-3000 satin nickel 170 38 1/40
99LED627 21 1680 2700-3000 satin nickel 220 38 1/20
Body: aluminium | Light source: Epistar SMD 2835 | Starting time: <0.5s | Power factor: λ>0.8 | OM - surface mounted luminaire
50/60
Hz
SMD
120
Ra>80
>20000
3
40
3+2
standard
+extended
5
YEAR TOTAL
WARRANTY
Energy class
