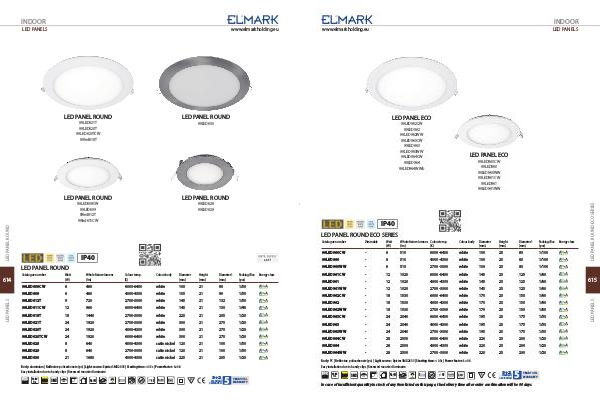

ELMARK Lighting 2019 Lighting_2019 | Page 214

INDOOR
LED PANELS
www.elmarkholding.eu
99LED630
LED PANEL ROUND LED PANEL ROUND
99LED609CW
99LED609
99led612T
99led611CW 99LED628
99LED629
LED PANEL ROUND
99LED621T
99LED620T
99LED620TCW
99led618T LED PANEL ROUND
IP40
LED PANEL ROUND
614
Catalogue number Watt
(W) Whole fixture lumens
(lm) Colour temp.
(K) Colour body Diameter
(mm) Height
(mm) Diameter1
(mm) Packing/Box
(pcs)
99LED609CW 6 480 6000-6400 white 105 21 90 1/50
99LED609 6 480 4000-4300 white 105 21 90 1/50
99LED612T 9 720 2700-3000 white 145 21 132 1/50
99LED611CW 12 960 6000-6400 white 145 21 130 1/40
99LED618T 18 1440 2700-3000 white 225 21 205 1/20
99LED621T 24 1920 2700-3000 white 300 21 270 1/20
99LED620T 24 1920 4000-4300 white 300 21 270 1/20
99LED620TCW 24 1920 6000-6400 white 300 21 270 1/20
99LED628 8 640 4000-4300 satin nickel 120 21 100 1/50
99LED629 8 640 2700-3000 satin nickel 120 21 100 1/50
99LED630 21 1680 4000-4300 satin nickel 225 21 205 1/20
Body: aluminium | Reflector: policarbonate (pc) | Light source: Epistar SMD2835 | Starting time: <0.5s | Power factor: λ>0.8
Easy installation due to handy clips | Recessed mounted luminaire.
50/60
Hz
SMD
120
Ra>80
>20000
3
40
3+2
standard
+extended
5
YEAR TOTAL
WARRANTY
Energy class
