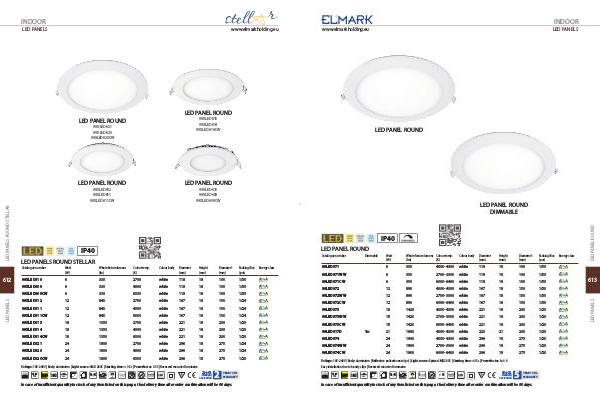

ELMARK Lighting 2019 Lighting_2019 | Page 212

INDOOR
LED PANELS
www.elmarkholding.eu
LED PANEL ROUND
99XLED615
99XLED614
99XLED614CW
LED PANEL ROUND
99XLED621
99XLED620
99XLED620CW
LED PANEL ROUND
99XLED612
99XLED611
99XLED611CW 99XLED610
99XLED609
99XLED609CW
LED PANEL ROUND
612
IP40
LED PANELS ROUND STELLAR
Catalogue number Watt
(W) Whole fixture lumens
(lm) Colour temp.
(K) Colour body Diameter
(mm) Height
(mm) Diameter1
(mm) Packing/Box
(pcs)
99XLED610 6 330 2700 white 118 18 100 1/30
99XLED609 6 330 4000 white 118 18 100 1/30
99XLED609CW 6 330 6500 white 118 18 100 1/30
99XLED612 12 840 2700 white 167 18 150 1/24
99XLED611 12 840 4000 white 167 18 150 1/24
99XLED611CW 12 840 6500 white 167 18 150 1/24
99XLED615 18 1350 2700 white 221 18 200 1/20
99XLED614 18 1350 4000 white 221 18 200 1/20
99XLED614CW 18 1350 6500 white 221 18 200 1/20
99XLED621 24 1800 2700 white 296 18 275 1/24
99XLED620 24 1800 4000 white 296 18 275 1/24
99XLED620CW 24 1800 6500 white 296 18 275 1/20
Voltage: 185-240V | Body: aluminium | Light source: SMD 2835 | Starting time: < 0.5s | Power factor: 0.55 | Recessed mounted luminaire
50/60
Hz
SMD
120
Ra>80
2+0
>10000
standard
+extended
2
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
Energy class
