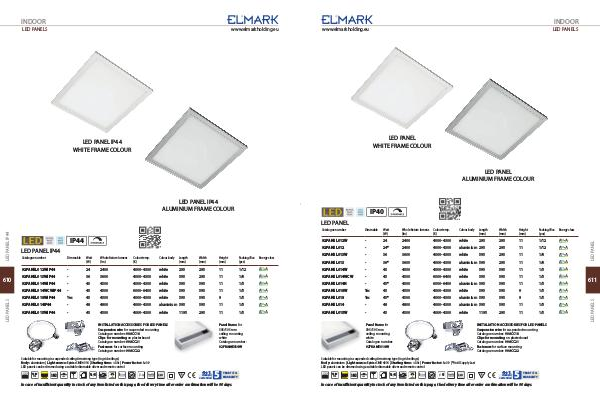

ELMARK Lighting 2019 Lighting_2019 | Seite 211

INDOOR
www.elmarkholding.eu
LED PANELS
LED PANEL
WHITE FRAME COLOUR
LED PANEL
ALUMINIUM FRAME COLOUR
IP40
LED PANEL
Watt
(W) Whole fixture lumens
(lm) Colour temp.
(K) Colour body Length
(mm) Width
(mm) Height
(mm) Packing/Box
(pcs)
92PANEL012W - 24 2400 4000-4300 white 295 295 11 1/12
92PANEL012 - 24* 2400 4000-4300 aluminium 295 295 11 1/12
92PANEL013W - 36 3600 4000-4300 white 595 295 11 1/6
92PANEL013 - 36* 3600 4000-4300 aluminium 595 295 11 1/6
92PANEL014W - 45 4500 4000-4300 white 595 595 11 1/5
92PANEL014WCW - 45 4500 6000-6400 white 595 595 11 1/5
92PANEL014N - 45* 4500 6000-6400 aluminium 595 595 11 1/5
92PANEL018W Yes 45 4500 4000-4300 white 595 595 9 1/5
92PANEL018 Yes 45* 4500 4000-4300 aluminium 595 595 9 1/5
92PANEL014 - 48 4800 4000-4300 aluminium 595 595 11 1/5
92PANEL015W - 45 4500 4000-4300 white 295 11 1/5
Panel frame for
595/595 mm
ceiling mounting
white
Catalogue number:
92FRAME014W
1195
INSTALLATION ACCESSORIES FOR LED PANELS
Suspension wire for suspended mounting
Catalogue number: 99ACC18
Clips for mounting on plasterboard
Catalogue number: 99ACC21
Fasteners for surface mounting
Catalogue number: 99ACC22
Suitable for mounting in suspended ceiling Armstrong type (in grid ceilings)
Body: aluminium | Light source: Epistar SMD4014 | Starting time: <0.5s | Power factor: λ>0.9 | *Until Supply Last
LED panels can be dimmed using a suitable dimmable driver and remote control.
50/60
Hz
SMD
120
Ra>80
>15000
3
40
4+1
standard
+extended
5
YEAR TOTAL
WARRANTY
In case of insufficient quantity in stock of any item listed on this page, the delivery time after order confirmation will be 90 days.
Energy class
Dimmable
611
Catalogue number
