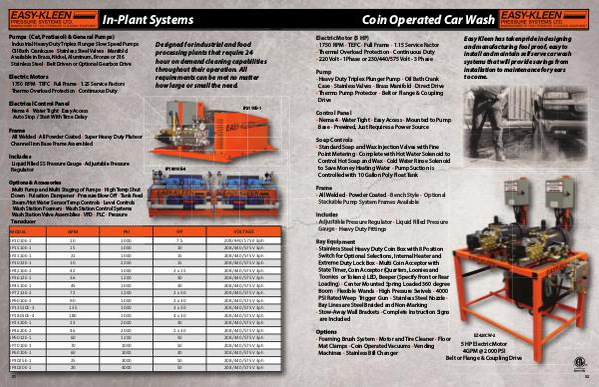

Coin Operated Car Wash
Electric Motor (5 HP)
· 1750 RPM • TEFC • Full Frame • 1.15 Service Factor
• Thermal Overload Protection • Continuous Duty
• 220 Volt - 1Phase or 230/440/575 Volt - 3 Phase
Pump
· Heavy Duty Triplex Plunger Pump • Oil Bath Crank
Case • Stainless Valves • Brass Manifold • Direct Drive
• Thermo Pump Protector • Belt or Flange & Coupling
Drive
Easy Kleen has taken pride in designing
and manufacturing fool proof, easy to
install and maintain self serve car wash
systems that will provide savings from
installation to maintenance for years
to come.
Control Panel
• Nema 4 • Water Tight • Easy Access • Mounted to Pump
Base • Prewired, Just Requires a Power Source
Soap Controls
• Standard Soap and Wax Injection Valves with Fine
Point Metering • Complete with Hot Water Solenoid to
Control Hot Soap and Wax • Cold Water Rinse Solenoid
to Save Money Heating Water • Pump Suction is
Controlled with 10 Gallon Poly Float Tank
Frame
• All Welded • Powder Coated • Bench Style • Optional
Stackable Pump System Frames Available
Includes
• Adjustable Pressure Regulator • Liquid Filled Pressure
Gauge • Heavy Duty Fittings
Bay Equipment
• Stainless Steel Heavy Duty Coin Box with 8 Position
Switch for Optional Selections, Internal Heater and
Extreme Duty Lock Box • Multi Coin Acceptor with
State Timer, Coin Acceptor (Quarters, Loonies and
Toonies or Tokens) LED, Beeper (Specify Front or Rear
Loading) • Center Mounted Spring Loaded 360 degree
Boom • Flexible Wands • High Pressure Swivels • 4000
PSI Rated Weep Trigger Gun • Stainless Steel Nozzle •
Bay Lines are Steel Braided and Non-Marking
• Stow-Away Wall Brackets • Complete Instruction Signs
are Included
Options
EZ420CW-2
• Foaming Brush System • Motor and Tire Cleaner • Floor
5 HP Electric Motor
Mat Clamps • Coin Operated Vacuums • Vending
4GPM @ 2000 PSI
Machines • Stainless Bill Changer
Belt or Flange & Coupling Drive
32
