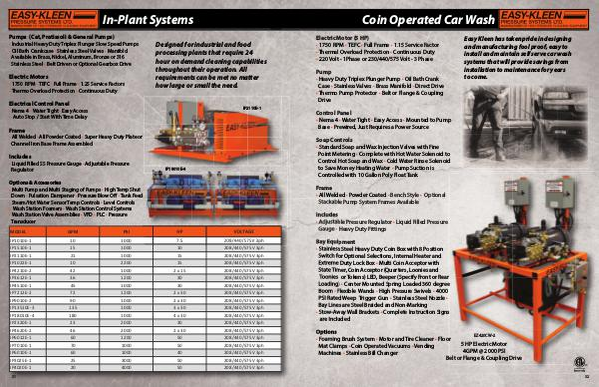

In-Plant Systems
Pumps( Cat, Pratissoli & General Pumps)
• Industrial Heavy Duty Triplex Plunger Slow Speed Pumps
• Oil Bath Crankcase • Stainless Steel Valves • Manifold Available in Brass, Nickel, Aluminum, Bronze or 316 Stainless Steel • Belt Driven or Optional Gearbox Drive
Electric Motors
• 1750 RPM • TEFC • Full Frame • 1.25 Service Factors
• Thermo Overload Protection • Continuous Duty
Electrical Control Panel
• Nema 4 • Water Tight • Easy Access
• Auto Stop / Start With Time Delay
Designed for industrial and food processing plants that require 24 hour on demand cleaning capabilities throughout their operation. All requirements can be met no matter how large or small the need.
IP2110E-1
Frame
• All Welded • All Powder Coated • Super Heavy Duty Plate or Channel Iron Base Frame Assembled
Includes
• Liquid Filled SS Pressure Gauge • Adjustable Pressure Regulator
IP18010E-4
Options & Accessories
• Multi Pump and Multi Staging of Pumps • High Temp Shut Down • Pulsation Dampener • Pressure Blow Off • Tank Feed
• Steam / Hot Water Sensor Temp Controls • Level Controls
• Wash Station Foamers • Wash Station Control Systems
• Wash Station Valve Assemblies • VFD • PLC • Pressure Transducer
MODEL GPM PSI HP
VOLTAGE IP1010E-1 10 1000 7.5 208 / 440 / 575V 3ph IP1510E-1 15 1000 10 208 / 440 / 575V 3ph IP2110E-1 21 1000 15 208 / 440 / 575V 3ph IP1022E-1 10 2200 15 208 / 440 / 575V 3ph IP4210E-2 42 1000 2 x 15 208 / 440 / 575V 3ph IP3612E-1 36 1200 30 208 / 440 / 575V 3ph IP4510E-1 45 1000 30 208 / 440 / 575V 3ph IP7212E-2 72 1200 2 x 30 208 / 440 / 575V 3ph IP9010E-2 90 1000 2 x 30 208 / 440 / 575V 3ph IP13510E-3 135 1000 3 x 30 208 / 440 / 575V 3ph IP18010E-4 180 1000 4 x 30 208 / 440 / 575V 3ph IP2320E-1 23 2000 30 208 / 440 / 575V 3ph IP4620E-2 46 2000 2 x 30 208 / 440 / 575V 3ph IP6012E-1 60 1200 50 208 / 440 / 575V 3ph IP7010E-1 70 1000 50 208 / 440 / 575V 3ph IP6010E-1 60 1000 40 208 / 440 / 575V 3ph IP3025E-1 25 3000 50 208 / 440 / 575V 3ph IP4020E-1 20 4000 50 208 / 440 / 575V 3ph
