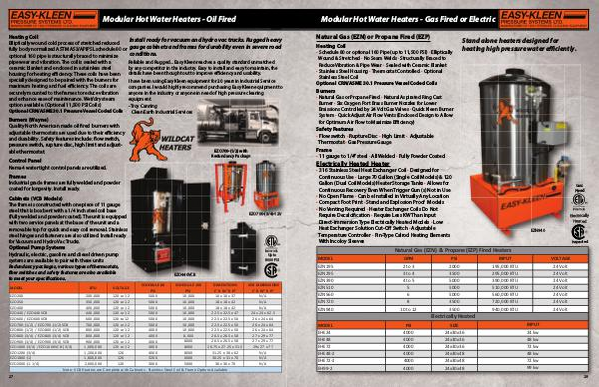

Modular Hot Water Heaters - Gas Fired or Electric
Natural Gas (EZN) or Propane Fired (EZP)
Heating Coil
• Schedule 80 or optional 160 Pipe (up to 11,500 PSI) • Elliptically
Wound & Stretched • No Seam Welds • Structurally Braced to
Reduce Vibration & Pipe Wear • Sealed with Ceramic Blanket
• Stainless Steel Housing • Thermostat Controlled • Optional
Stainless Steel Coil
Optional CRN/ASME 30.1 Pressure Vessel Coded Coils
Burners
• Natural Gas or Propane Fired • Natural Aspirated Ring Cast
Burner • Six Oxygen Port Brass Burner Nozzles for Lower
Emissions Controlled by 24 Volt Gas Valves • Quick Kleen Burner
System • Quick Adjust Air Flow Vents (Enclosed Design to Allow
for Optimum Air Flow to Maximize Efficiency)
Safety Features
• Flow switch • Rupture Disc • High Limit • Adjustable
Thermostat • Gas Pressure Gauge
Frame
• 11 gauge to 1/4” steel • All Welded • Fully Powder Coated
Stand alone heaters designed for
heating high pressure water efficiently.
Electrically Heated Heater
• 316 Stainless Steel Heat Exchanger Coil • Designed for
Continuous Use • Large 70 Gallon (Single Coil Models) & 120
Gallon (Dual Coil Models) Heater Storage Tanks • Allows for
Continuous Recovery Even When Trigger Gun (s) Not in Use
• No Open Flame • Can be Installed in Virtually Any Location
• Compact Foot Print • Stand and Explosion Proof Models
• No Venting Required • Heater Exchanger Coils Do Not
Require Decalcification • Require Less KW Than Input
Direct-immersion Type Electrically Heated Models • Low
Heat Exchanger Solution Cut-Off Switch • Adjustable
Temperature Controller • Pin-Type Calrod Heating Elements
With Incoloy Sleeves
Gas
Fired
Electrically
Heated
EZN940
Inspected
Natural Gas (EZN) & Propane (EZP) Fired Heaters
MODEL GPM PSI INPUT VOLTAGE
EZN195
EZN295
EZN390
EZN510
EZN560
EZN720
EZN940 2 to 3
3 to 4
4 to 5
5
6
8
10 to 12 2000
3500
5000
5000
5000
3500
3500 195,000 BTU
295,000 BTU
390,000 BTU
510,000 BTU
560,000 BTU
720,000 BTU
940,000 BTU 24 Volt
24 Volt
24 Volt
24 Volt
24 Volt
24 Volt
24 Volt
Electrically Heated
MODEL PSI SIZE INPUT
EHE24
EHE48
EHE72
EHE48-2
EHE72-2
EH99-2 4000
4000
4000
4000
4000
4000 24x30x36
24x30x36
24x30x36
24x30x48
24x30x48
24x30x48 24 kw
48 kw
72 kw
48 kw
72 kw
99 kw
