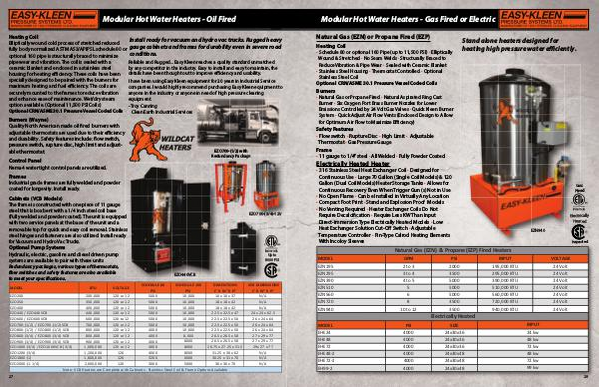

Modular Hot Water Heaters- Oil Fired
Modular Hot Water Heaters- Oil Fired
Heating Coil Elliptically wound cold process of stretched reduced fully body normalized ASTM A53 / APIPSL schedule 80 or optional 160 pipe is structurally braced to minimize pipe wear and vibration. The coil is sealed with a ceramic blanket and enclosed in a stainless steel housing for heating efficiency. These coils have been specially designed to be paired with the burners for maximum heating and fuel efficiency. The coils are securely mounted to the frames to reduce vibration and enhance ease of maintenance. Wet / dry steam option available.( Optional 11,500 PSI Coils) Optional CRN / ASME 30.1 Pressure Vessel Coded Coils
Burners( Wayne) Quality North American made oil fired burners with adjustable thermostats are used due to their efficiency and durability. Safety features include: flow switch, pressure switch, rupture disc, high limit and adjustable thermostat.
Control Panel Nema 4 water tight control panels are utilized.
Frames Industrial grade frames are fully welded and powder coated for longevity. Install ready.
Cabinets( VCB Models) The frame is constructed with one piece of 11 gauge steel that is box bent with a 1 / 4 inch steel coil base( Fully welded and powder coated). The unit is equipped with two service panels at the base of the unit and a removable top for quick and easy coil removal. Stainless steel hinges and fasteners are also utilized. Install ready for Vacuum and Hydro Vac Trucks. Optional Pump Systems Hydraulic, electric, gasoline and diesel driven pump systems are available to pair with these units Redundancy packages, various types of thermostats, flow switches and safety features are also available to meet your specifications.
27
Install ready for vacuum and hydro vac trucks. Rugged heavy gauge cabinets and frames for durability even in severe road conditions.
Reliable and Rugged... Easy Kleen reaches a quality standard unmatched by any competitor in the industry. Easy to install and easy to maintain, the details have been thought out to improve efficiency and usability.
I have been using Easy Kleen equipment for 20 years in Industrial Service companies. I would highly recommend purchasing Easy Kleen equipment to anyone in the industry or anyone in need of high pressure cleaning equipment.
- Troy Canning Clean Earth Industrial Services
EZO440VCB
EZO700-( 1 / 2) with Redundancy Package
EZO700-( 3 / 4)-12V
Up to 8000 PSI
MODEL |
BTU |
VOLTAGE |
SCHEDULE 80
PSI
|
SCHEDULE 160
PSI
|
DIMENTIONS
L " X W " X H "
|
VCB DIMENSIONS
L " X W " X H "
|
EZO200 |
200,000 |
120 or 12 |
5000 |
10,000 |
16 x 16 x 37 |
N / A |
EZO350 |
350,000 |
120 or 12 |
5000 |
10,000 |
18 x 18 x 42 |
N / A |
EZO400 |
400,000 |
120 or 12 |
5000 |
10,000 |
18 x 18 x 42 |
N / A |
EZO440 / EZO440VCB |
440,000 |
120 or 12 |
5000 |
10,000 |
22.5 x 22.5 x 47 |
24 x 24 x 62.5 |
EZO600 / EZO600VCB |
600,000 |
120 to 12 |
5000 |
10,000 |
22.5 x 22.5 x 50 |
26 x 24 x 64 |
EZO700-( 1 / 2) / EZO700-( 1 / 2) VCB |
700,000 |
120 or 12 |
5000 |
10,000 |
22.5 x 22.5 x 50 |
26 x 24 x 64 |
EZO800-( 1 / 2) / EZO800-( 1 / 2) VCB |
800,000 |
120 or 12 |
4000 |
10,000 |
22.5 x 22.5 x 50 |
26 x 24 x 64 |
EZO800-( 3 / 4) / EZO800-( 3 / 4) VCB |
800,000 |
120 or 12 |
4000 |
8,000 |
26.5 x 26.5 x 58 |
27 x 29 x 77 |
EZO900-( 3 / 4) / EZO900-( 3 / 4) VCB |
900,000 |
120 or 12 |
4000 |
8000 |
26.5 x 26.5 x 58 |
27 x 29 x 77 |
EZO1000-( 3 / 4) / EZO1000VCB-( 3 / 4) |
1,000,000 |
120 or 12 |
4000 |
8000 |
26.75 x 27.25 x 51.5 |
29x 27 x 77 |
EZO1200-( 3 / 4) |
1,200,000 |
120 |
4000 |
8000 |
31.25 x 30 x 62 |
N / A |
EZO1800-( 1) |
1,800,000 |
120 |
3200 |
6000 |
30.25 x 31 x 70 |
N / A |
EZO2000-( 1-1 / 4) |
2,000,000 |
120 |
3000 |
5000 |
36 x 36 x 70 |
N / A |
Note: VCB Heaters are Complete with Cabinets- Stainless Steel Coil & Frame Options Available |
