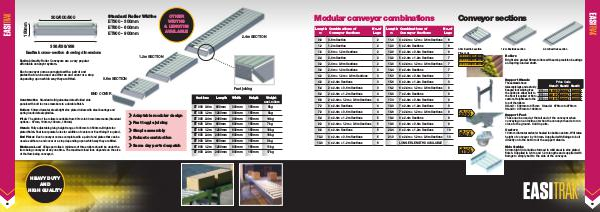

Easikit Catalogue from Coveya Coveya Easikit catalogue | Page 49

Modular conveyor combinations
Length Combinations of
m
Conveyor Sections
No.of
Legs
Length Combinations of
m
Conveyor Sections
Conveyor sections
No.of
Legs
0.6 0.6m Section 2 11.4 4 x 2.4m + 1.2m + 0.6m Sections 6
1.2 1.2m Section 2 12.0 5 x 2.4m Sections 6
1.8 0.6m + 1.2m Sections 2 12.6 5 x 2.4m + 0.6m Sections 6
2.4 2.4m Section 2 13.2 5 x 2.4m + 1.2m Sections 7
3.0 2.4m + 0.6m Sections 2 13.8 5 x 2.4m + 1.2m + 0.6m Sections 7
3.6 2.4m + 1.2m Sections 3 14.4 6 x 2.4m Sections 7
4.2 2.4m + 1.2m + 0.6m Sections 3 15.0 6 x 2.4m + 0.6m Sections 7
4.8 2 x 2.4m Sections 3 15.6 6 x 2.4m + 1.2m Sections 8
5.4 2 x 2.4m + 0.6m Sections 3 16.2 6 x 2.4m + 1.2m + 0.6m Sections 8
6.0 2 x 2.4m + 1.2m Sections 4 16.8 7 x 2.4m Sections 8
6.6 2 x 2.4m + 1.2m + 0.6m Sections 4 17.4 7 x 2.4m + 0.6m Sections 8
7.2 3 x 2.4m Sections 4 18.0 7 x 2.4m + 1.2m Sections 9
7.8 3 x 2.4m + 0.6m Sections 4 18.6 7 x 2.4m + 1.2m + 0.6m Sections 9
8.4 3 x 2.4m + 1.2m Sections 5 19.2 8 x 2.4m Sections 9
9.0 3 x 2.4m + 1.2m + 0.6m Sections 5 19.8 8 x 2.4m + 0.6m Sections 9
9.6 4 x 2.4m Sections 5 20.4 8 x 2.4m + 1.2m Sections 10
10.2 4 x 2.4m + 0.6m Sections 5 21.0 8 x 2.4m + 1.2m + 0.6m Sections 10
10.8 4 x 2.4m + 1.2m Sections 6
0.6m Easitrak section
1.2m Easitrak section
2.4m Easitrak section
Price code
ET300 3000-300R
ET600 3000-600R
ET900 3000-900R
Rollers
Bright zinc plated 50mm rollers with semi-precision bearings
and spring-loaded shaft.
Support Stands
Price Code
Price Code
These stands have
Stand 1 Stand 2 Stand 3
telescopic legs and a sturdy
flanged foot which gives
ET300 2331 2332 2333
the option to either bolt to
ET600 2361 2362 2363
the floor if required or fix to
castors. Heights are to the ET900 2391 2392 2393
top of the rollers:
Stand 1: 500mm to 675mm Stand 2: 675mm to 975mm
Stand 3: 975mm to 1400mm
2330 Support Feet
Price Code Castors
Price Code Side Guides
SLCA
LONGER LENGTHS AVAILABLE
ETSG
These can be used at the tail end of the conveyor when
conveying on an incline or when the conveyor needs to run
close to the ground. Sold in pairs.
100mm diameter swivel wheeled lockable castors. Will raise
height of conveyor by 130mm. Supplied with fixings to bolt
directly onto the bottom of the support stands.
60mm high Side Guides formed in mild steel in zinc plated
finish. Supplied in 0.6m and 1.2m lengths and supplied with
fixings to simply bolt to the side of the conveyor.
