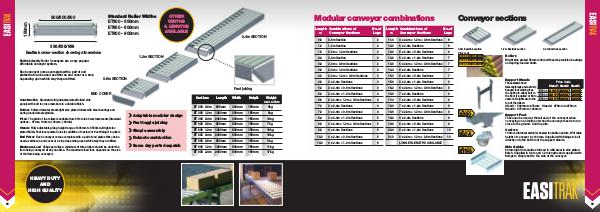

Easikit Catalogue from Coveya Coveya Easikit catalogue | Page 48

Standard Roller Widths
ET300 - 300mm
ET600 - 600mm
ET900 - 900mm
150mm
300/600/900
OTHER
WIDTHS
& LENGTHS
AVAILABLE
2.4m SECTION
338/638/938
Easitrak cross-section showing dimensions
1.2m SECTION
Easitrak Gravity Roller Conveyors are a very popular
affordable conveyor system.
Each conveyor comes complete with a pair of end
plates that can be used as either an end cover or a stop
depending upon which way they are fitted.
0.6m SECTION
Fast joining
END COVER
Construction Standard mild galvanised steel folded side
panels with bolt in cross members in a durable finish.
Rollers 50mm diameter steel bright zinc plated rollers with steel bearings and
spring loaded steel spindles.
Pitch The pitch of the rollers is variable from 67mm in 33mm increments (Standard
options – 67mm, 100mm, 133mm, 166mm)
Length Width Height
Weight
ET 300 0.6m 600mm 338mm 150mm ET 300 1.2m 1200mm 338mm 150mm 8kg
ET 300 2.4m 2400mm 338mm 150mm 14kg
excl. rollers
5kg
Fast toggle joining ET 600 0.6m 600mm 638mm 150mm 7kg
Stands Fully adjustable giving height range of 435mm to 3500mm. Bright zinc
plated finish. Feet incorporate holes for addition of castors or floor fixing if required. Simple assembly ET 600 1.2m 1200mm 638mm 150mm 10kg
End Plates Each conveyor comes complete with a pair of end plates that can be
used as either an end cover or a stop depending upon which way they are fitted. Robust construction ET 600 2.4m 2400mm 638mm 150mm 16kg
ET 900 0.6m 600mm 938mm 150mm 8kg
ET 900 1.2m 1200mm 938mm 150mm 11kg
ET 900 2.4m 2400mm 938mm 150mm 17kg
Maximum Load 35kgs per roller. A minimum of three rollers should be under the
item being conveyed at any one time. The maximum load thus depends on the size
of the item being conveyed.
HEAVY DUTY
AND
HIGH QUALITY
48
Adaptable modular design
Sections
Same day parts despatch
