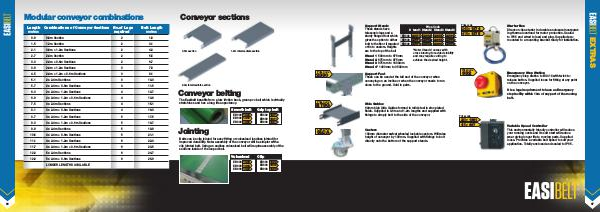

Modular conveyor combinations
Length Combinations of Conveyor Sections
metres
Belt Length
metres
0.9 0.6m Section 2 1.9
1.5 1.2m Section 2 3.1
2.1 0.6m + 1.2m Sections 2 4.3
2.7 2.4m Section 2 5.5
3.3 2.4m + 0.6m Sections 2 6.7
3.9 2.4m + 1.2m Sections 3 7.9
4.5 2.4m + 1.2m + 0.6m Sections 3 9.1
5.1 2 x 2.4m Sections 3 10.3
5.7 2 x 2.4m + 0.6m Sections 3 11.5
6.3 2 x 2.4m + 1.2m Sections 4 12.7
6.9 2 x 2.4m + 1.2m + 0.6m Sections 4 13.9
7.5 3 x 2.4m Sections 4 15.1
8.1 3 x 2.4m + 0.6m Sections 4 16.3
8.7 3 x 2.4m + 1.2m Sections 5 17.5
9.3 3 x 2.4m + 1.2m + 0.6m Sections 5 18.7
9.9 4 x 2.4m Sections 5 19.9
10.5 4 x 2.4m + 0.6m Sections 5 21.1
11.1 4 x 2.4m + 1.2m Sections 6 22.3
11.7 4 x 2.4m + 1.2m + 0.6m Sections 6 23.5
12.3 5 x 2.4m Sections 6 24.7
12.9 5 x 2.4m + 0.6m Sections 6 25.9
LONGER LENGTHS AVAILABLE
46
No.of Legs
required
Conveyor sections
0.6m section
1.2m intermediate section
2.4m intermediate section
Conveyor belting
The Easibelt benefits from a low friction back, green pvc belt which is virtually
stretchless and has a long life expectancy.
Smooth belt Grip top belt
EB300 1430
EB600 1460
EB900 1490 EB300 1431
EB600 1461
EB900 1491
Jointing
Belts can be clip jointed for easy fitting or vulcanised (endless jointed) for
improved durability. Note: assembly of the conveyor will be simpler with a
clip jointed belt. Using an endless vulcanised belt will require assembly of the
sections inside of the looped belt.
Vulcanised
EB300 1438
EB600 1468
EB900 1498
Clip
EB300 1439
EB600 1469
EB900 1499
