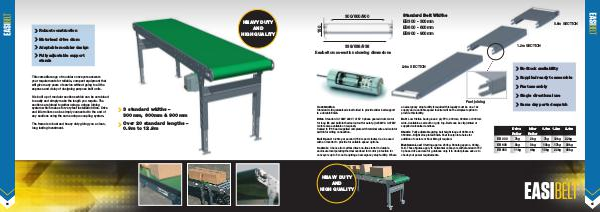

Easikit Catalogue from Coveya Coveya Easikit catalogue | Page 45

300/600/900
Standard Belt Widths
EB300 - 300mm
EB600 - 600mm
EB900 - 900mm
0.6m SECTION
338/638/938
1.2m SECTION
Easibelt cross-section showing dimensions
2.4m SECTION
Ex-Stock availability
Supplied ready to assemble
Fast assembly
Single directional use
Fast joining
Construction
Standard mild galvanised steel folded to provide slider belt support
in a durable finish. an emergency stop facil ity is required this legally must be on a 12v
supply and a variable speed inverter will be the simplest option to
provide this facility.
Drive Standard 0.18kW 240V / 415V 3 phase geared drum motor
for long life and built-in thermal cutout for safety. (0.25kW & 0.37kW
motors also available on request).
Sealed to IP65 and supplied complete with terminal wire and isolator
switch for wiring connection. Belt Low friction back green 2 ply PVC, 300mm, 600mm or 900mm
wide. Available as smooth or grip top. Belts can be clip jointed or
supplied vulcanised endless.
Belt Speed 0.26m per second (15.6m per minute). Can be used
with an inverter to provide for variable speed options.
Controls Choose from either direct-on-line starter in durable
enclosure incorporating thermal overload for motor protection for
conveyors up to 5m not requiring an emergency stop facility. Where
HEAVY DUTY
AND
HIGH QUALITY
Stands Fully adjustable giving belt height range of 435mm to
3500mm. Bright zinc plated finish. Feet incorporate holes for
addition of castors or floor fixing if required.
Maximum Load Starting approx. 250kg. Running approx. 350kg.
N.B. These figures apply to horizontal conveyors with standard 415V
3 phase drive and are for guidance only. If in doubt please ask us to
check your power requirements.
Same day parts despatch
Drive
Roller Idler
Roller
0.6m 1.2m
2.4m
EB 300 7kg 2kg 7kg 12kg 22kg
EB 600 9kg 3kg 10kg 17kg 32kg
EB 900 11kg 4kg 13kg 22kg 43kg
The manufacturer does not accept responsibility for any loss, damage to other equipment, injury to personnel or any other
circumstance resulting from the use of our equipment. All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means – electronic, mechanical, photocopying, recording or otherwise – unless
the permission of the publisher has been given beforehand. © 2007 All specifications are subject to change without notice.
5 45
