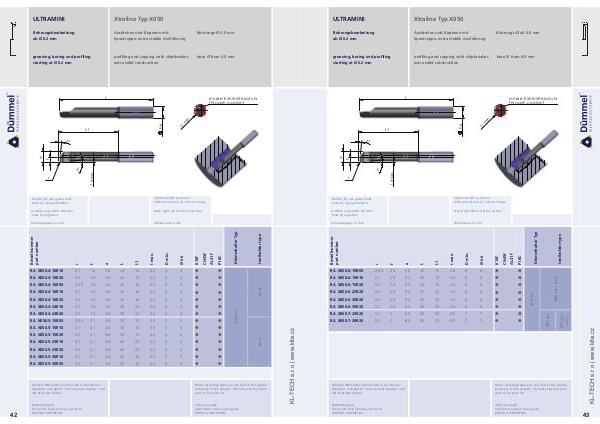

ULTRAMINI Xtraline Typ X050 Bohrungsbearbeitung ab Ø 0.2 mm Ausdrehen und Kopieren mit Spantreppe, extra stabile Ausführung Bohrungs-Ø ab 6.0 mm grooving, boring and profiling starting at Ø 0.2 mm profiling and copying with chipbreaker, extra solid construction bore Ø from 6.0 mm L L1 innere Kühlmittelzufuhr through coolant 6   6 6   R/L X050.6-15R20 0.2 2.5 5.5 30 15 0.4 6 6   R/L X050.6-22R20 0.2 2.5 5.5 37 22 0.4 6 6   R/L X050.6-30R20 0.2 2.5 5.5 45 30 0.4 6 6   R/L X050.6-35R20 0.2 2.5 5.5 50 35 0.4 6 6   R/L X050.7-25R20 0.2 3 6.5 40 25 0.5 7 7   R/L X050.7-30R20 0.2 3 6.5 45 30 0.5 7 7   Weitere HM Sorten können Sie in der Sorten- übersicht im Kapitel "Technische Hinweise" und der Preisliste finden. More carbide grades you can find in the grades summary in the chapter "technical instructions" and in the price list. Bestellbeispiel: für rechte Ausführung und Sorte RX050.6-15R05/P18C order-example: righthand version and grade RX050.6-15R05/P18C 6 0.4 toolholder 0.4 15 15 30 30 5.5 5.5 2.5 Typ 2.5 0.1 0.05 R/L X050.6-15R10 R/L X050.6-15R05 dimensions in mm Abmessungen in mm state right (R) or left (L) version Ausführung rechts (R) oder links (L) angeben righthand (R): as shown lefthand version (L): mirror image Rechts (R): wie gezeichnet Links (L): spiegelbildlich r 6° 43
