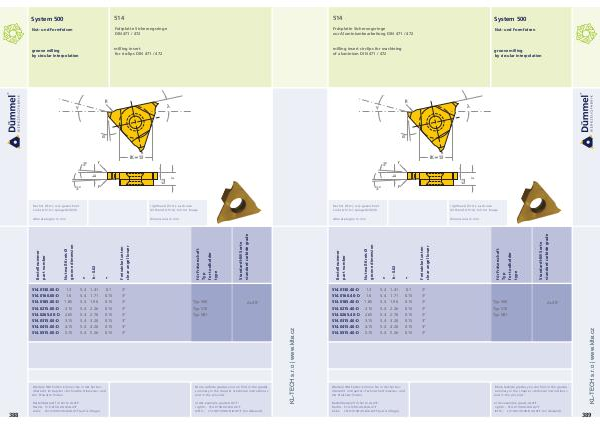

514 System 500
Fräsplatte Sicherungsringe
zur Aluminiumbearbeitung DIN 471 / 472 Nut- und Formfräsen
milling insert circlips for machining
of aluminium DIN 471 / 472 groove milling
by circular interpolation
R
γ
λ
α
IK = 13
r
s
r
dimensions in mm
Abmessungen in mm righthand (514.): as shown
lefthand (L514.): mirror image
Rechts (514.): wie gezeichnet
Links (L514.): spiegelbildlich
carbide grade
r
3°
3°
60°
1.3
1.6
1.85
2.15
2.65
3.15
4.15
5.15
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
1.41
1.71
1.96
2.26
2.76
3.26
4.26
5.26
0.1
0.15
0.15
0.15
0.15
0.15
0.15
0.15
3°
3°
3°
3°
3°
3°
3°
3°
Typ 500
Typ 510
Typ 581
AL41F
Weitere HM Sorten können Sie in der Sorten-
übersicht im Kapitel »Technische Hinweise« und
der Preisliste finden. More carbide grades you can find in the grades
summary in the chapter »technical instructions«
and in the price list.
Bestellbeispiel für Sorte AL41F:
Rechts: 514.0130.40-D/AL41F
Links: L514.0130.40-D/AL41F (auf Anfrage) order-example grade AL41F:
righth.: 514.0130.40-D/AL41F
lefth.: L514.0130.40-D/AL41F (on demand)
514.0130.40-D
514.0160.40-D
514.0185.40-D
514.0215.40-D
514.0265.40-D
514.0315.40-D
514.0415.40-D
514.0515.40-D
