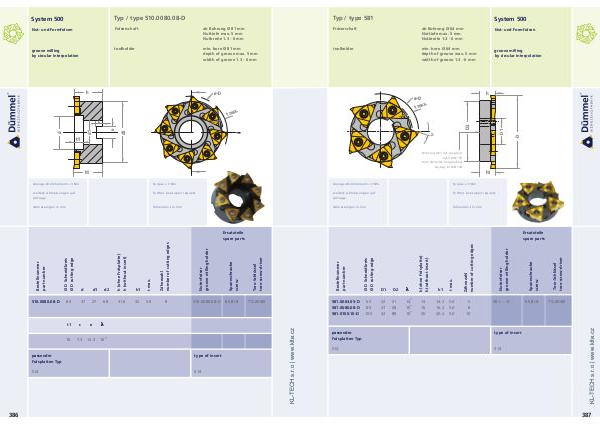

Typ / type 581
Fräserschaft
toolholder ab Bohrung Ø 64 mm Nuttiefe max. 5 mm Nutbreite 1.3- 6 mm
min. bore Ø 64 mm depth of groove max. 5 mm width of groove 1.3- 6 mm
System 500
Nut- und Formfräsen
groove milling by circular interpolation ø-D t max. h
λ
D1
D
D2
Bohrung( D1) mit Längsnut
Bohrung( D1) mit nach Längsnut DIN 138 nach DIN bore 138( D1) with longitudinal bore( D1) with keyway longitudinal to DIN 138 keyway to DIN 138 h1
Anzugs-Drehmoment = 3 Nm
weitere Abmessungen auf Anfrage
Abmessungen in mm torque = 3 Nm
further sizes upon request
dimensions in mm
Bestellnummer
part number d
581.0063.05-D 581.0080.08-D 581.0100.10-D
h
Ø D Schneidkreis Ø D cutting edge d1
t1 63 80 100
c
e
d2
D1 D2 λ h1
22 27 32
51 68 88
14 ° 10 ° 10 °
h( ohne Fräsplatte) h( without insert)
14 16 20
14.2 16.2 20.2
t max.
5.0 5.0 5.0
Zähnezahl number of cutting edges
5 8 10
h2
Nutenfräser groove milling holder
t max.
Ersatzteile spare parts
S
Spannschraube
λ
screw
Torx-Schlüssel
torx-screw-driver
5 °
581....-D 85.818 TX-20 / 80
22
M cl
passender Fräsplatten Typ
514
h1
45 °
type of insert
514
