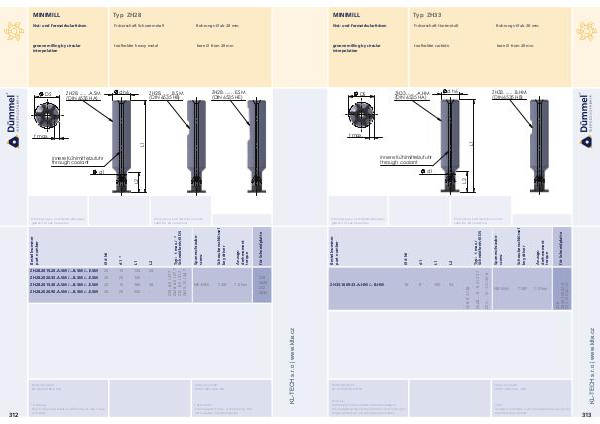

MINIMILL Typ ZH33 Nut- und Formzirkularfräsen Fräserschaft Hartmetall Bohrungs-Ø ab 28 mm
groove milling by circular
interpolation toolholder carbide bore Ø from 28 mm
d h6
ZH33. ..... .A.HM
(DIN 6535 HA)
DS
ZH33. ..... .B.HM
(DIN 6535 HB)
t max.
innere Kühlmittelzufuhr
through coolant
d1
für
drehmoment
7.0 Nm
Bestellbeispiel:
ZH33.1609.33.A.HM order-example:
ZH33.1609.33.A,.HM
Hinweis:
Hartmetall-Fräserschäfte mit beschädigter
Schneidplattenaufnahme können durch unseren
Reparaturservice instand gesetzt werden. note:
carbide-toolholder with damaged seating can be
repaired by Dümmel.
T 20F
M5-MM
33
100 9 16 ZH33.1609.33.A.HM /...B.HM
dimensions and describtions are
valid for all variations
Abmessungen und Beschreibungen
gelten für alle Varianten
