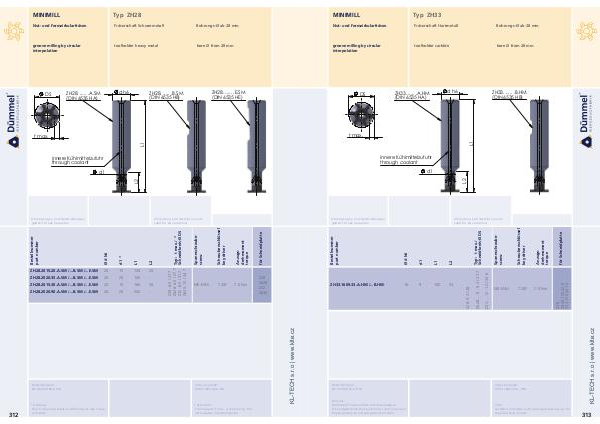

MINIMILL Typ ZH28 Nut- und Formzirkularfräsen Fräserschaft Schwermetall Bohrungs-Ø ab 28 mm
groove milling by circular
interpolation toolholder heavy metal bore Ø from 28 mm
d h6
ZH28. ..... .A.SM
(DIN 6535 HA)
DS
ZH28. ..... .E.SM
(DIN 6535 HE)
ZH28. ..... .B.SM
(DIN 6535 HB)
L1
t max.
innere Kühlmittelzufuhr
through coolant
d1
-
ZH28.2015.30.A.SM /...B.SM /...E.SM 20 15 160 30
ZH28.2020.90.A.SM /...B.SM /...E.SM 20 20 200 -
Bestellbeispiel:
ZH28.2020.90.A.SM
312
* Achtung:
Durch die extrastabile Ausführung ist das t max.
reduziert.
M5-MM
T 20F
7.0 Nm
order-example:
ZH28.2020.90.A.SM
* attention:
The measure t max. is reduced by the
extra-stable implementation.
Z28
Z628
Z32
Z635
20
145
für
130 20
drehmoment
15 20 20 ZH28.2020.35.A.SM /...B.SM /...E.SM ZH28.2015.20.A.SM /...B.SM /...E.SM
dimensions and describtions are
valid for all variations
Abmessungen und Beschreibungen
gelten für alle Varianten
