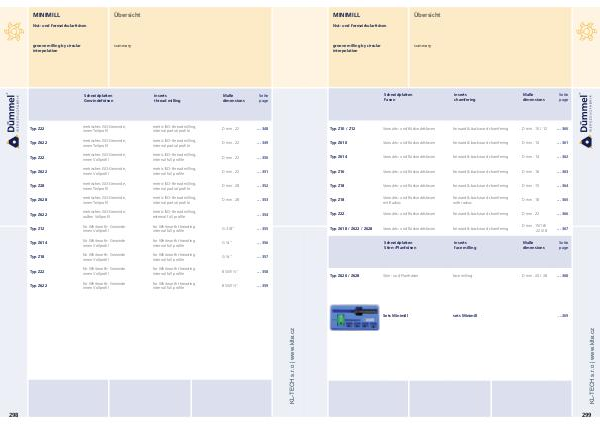

Schneidplatten Gewindefräsen |
inserts thread milling |
Maße dimensions |
Seite page |
Typ Z22 |
metrisches ISO-Gewinde, innen Teilprofil |
metric ISO-thread milling, internal partial profile |
D min. 22... 348 |
|||
Typ Z622 |
metrisches ISO-Gewinde, innen Teilprofil |
metric ISO-thread milling, internal partial profile |
D min. 22... 349 |
|||
Typ Z22 |
metrisches ISO-Gewinde, innen Vollprofil |
metric ISO-thread milling, internal full profile |
D min. 22... 350 |
|||
Typ Z622 |
metrisches ISO-Gewinde, innen Vollprofil |
metric ISO-thread milling, internal full profile |
D min. 22... 351 |
|||
Typ Z28 |
metrisches ISO-Gewinde, innen Teilprofil |
metric ISO-thread milling, internal partial profile |
D min. 28... 352 |
|||
Typ Z628 |
metrisches ISO-Gewinde, innen Teilprofil |
metric ISO-thread milling, internal partial profile |
D min. 28... 353 |
|||
Typ Z622 |
metrisches ISO-Gewinde, außen Vollprofil |
metric ISO-thread milling, external full profile |
... 354 |
|||
Typ Z12 |
für Whitworth- Gewinde innen Vollprofil |
for Whitworth threading internal full profile |
G 3 / 8 "... 355 |
|||
Typ Z614 |
für Whitworth- Gewinde innen Vollprofil |
for Whitworth threading internal full profile |
G ¾ "... 356 |
|||
Typ Z18 |
für Whitworth- Gewinde innen Vollprofil |
for Whitworth threading internal full profile |
G ¾ "... 357 |
|||
Typ Z22 |
für Whitworth- Gewinde innen Vollprofil |
for Whitworth threading internal full profile |
BSW1½ "... 358 |
|||
Typ Z622 |
für Whitworth- Gewinde innen Vollprofil |
for Whitworth threading internal full profile |
BSW1½ "... 359 |
