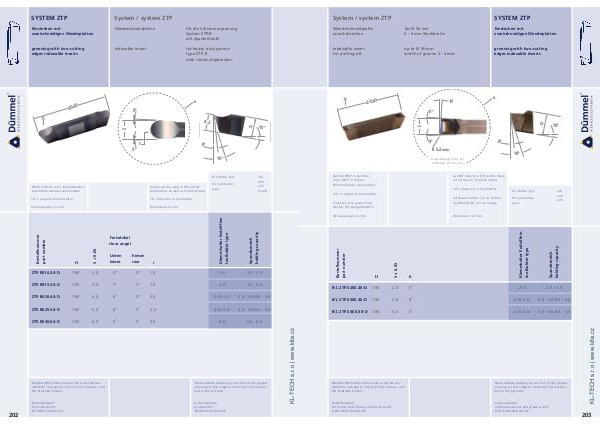

SYSTEM Ztp System / system ZTP Einstechen mit
zweischneidigen Wendeplatten Wendeschneidplatte für die Schwerzerspanung
System ZTP.R
mit Spanleitstufe
grooving with two-cutting
edges indexable inserts indexable insert for heavy duty groove
type ZTP. R
with round chipbreaker
x
0
29.9
3°
X
6.2
H
r
10°
6°
3°
16°
10° = position in toolholder
Abmessungen in mm dimensions in mm
202
Freiwinkel
clear angel
Unten
hinten
lower
H rear
r
ZTP.R010.20-D 7.90 2.0 3° 3° 1.0 .2-D 2.0 - 3.0
ZTP.R015.30-D 7.90 3.0 5° 3° 1.5 .3-D 3.0 - 4.0
ZTP.R020.40-D 7.90 4.0 6° 3° 2.0 .3-D/.4-D 3.0 - 4.0/4.0 - 5.0
ZTP.R025.50-D 7.90 5.0 6° 3° 2.5 .4-D/.5-D 4.0 - 5.0/5.0 - 5.5
ZTP.R030.60-D 7.50 6.0 6° 3° 3.0 .6-D 5.6 - 6.3
Weitere HM Sorten können Sie in der Sorten-
übersicht im Kapitel »Technische Hinweise« und
der Preisliste finden. More carbide grades you can find in the grades
summary in the chapter »technical instructions«
and in the price list.
Bestellbeispiel:
für Sorte AL41F:
ZTP.R010.20-D/AL41F order-example:
grade AL41F:
ZTP.R010.20-D/AL41F
10° = Lage im Klemmhalter
Endziffern
inserts can be used in RH and LH
toolholders as well as in boring bars
WSP sind in R und L Klemmhaltern
sowie Bohrstangen verwendbar
212
220
225
0.428
Spannbereich
holding
Für Halter-Typ:
for toolholder
type:
