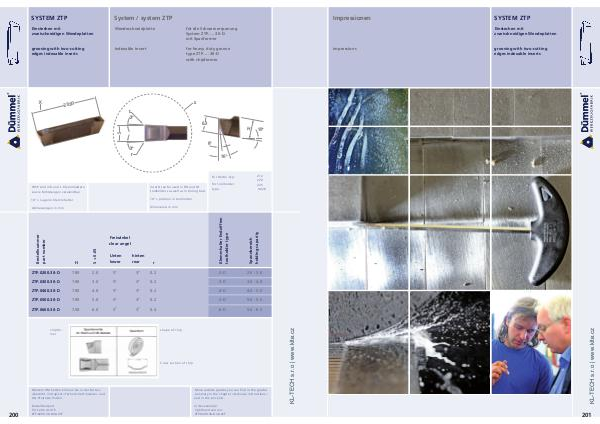

SYSTEM ZTP
Einstechen mit zweischneidigen Wendeplatten
grooving with two-cutting edges indexable inserts
System / system ZTP
Wendeschneidplatte
indexable insert für die Schwerzerspanung System ZTP.... 30-D mit Spanformer
for heavy duty groove type ZTP.... 30-D with chipformer
X
29.90
S r 3 ° x
6.3
H
10 °
3 ° r
6 °
16 °
WSP sind in R und L Klemmhaltern sowie Bohrstangen verwendbar
inserts can be used in RH and LH toolholders as well as in boring bars
Für Halter-Typ:
for toolholder type:
212 220 225 0.428
10 ° = Lage im Klemmhalter
10 ° = position in toolholder
Abmessungen in mm
dimensions in mm
Bestellnummer part number
H
S + 0.05
Freiwinkel clear angel
Unten hinten lower rear
r
Klemmhalter Endziffern toolholder type
Spannbereich holding capacity
ZTP. 0200.30-D
7.90
2.0
5 °
3 °
0.2
. 2-D
2.0- 3.0
ZTP. 0300.30-D
7.90
3.0
5 °
3 °
0.2
. 3-D
3.0- 4.0
ZTP. 0400.30-D
7.90
4.0
5 °
3 °
0.2
. 4-D
4.0- 5.0
ZTP. 0500.30-D
7.90
5.0
5 °
3 °
0.2
. 5-D
5.0- 5.5
ZTP. 0600.30-D
7.50
6.0
5 °
3 °
0.4
. 6-D
5.6- 6.3
200
chipformer
Weitere HM Sorten können Sie in der Sortenübersicht im Kapitel » Technische Hinweise « und der Preisliste finden.
Bestellbeispiel: für Sorte AL41F: ZTP. 0200.30-D / AL41F
shape of chip
Cross section of chip
More carbide grades you can find in the grades summary in the chapter » technical instructions « and in the price list.
order-example: righthand version: ZTP. 0200.30-D / AL41F
