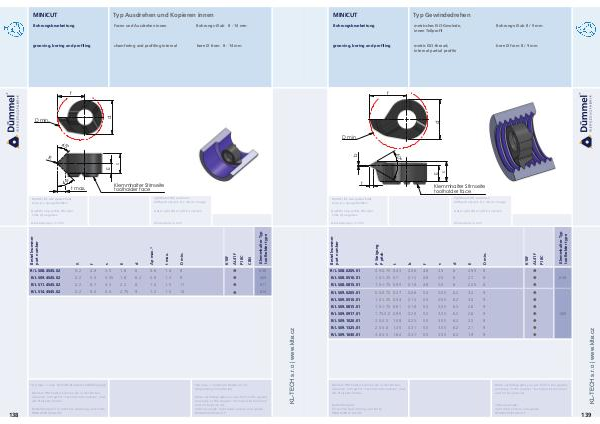

MINICUT
Bohrungsbearbeitung
Typ Gewindedrehen
metrisches ISO-Gewinde, innen Teilprofil
Bohrungs-Ø ab 8 / 9 mm grooving, boring and profiling metric ISO-thread, internal partial profile bore Ø from 8 / 9 mm f
Bestellnummer part number |
P Steigung P pitch |
|
|
|
|
|
|
|
|
|
|
|
t
b
f d
D min. b
60 °
E s
Rechts( R): wie gezeichnet Links( L): spiegelbildlich
Ausführung rechts( R) oder links( L) angeben t
Abmessungen in mm
Klemmhalter Stirnseite toolholder face
righthand( R): as shown lefthand version( L): mirror image
state right( R) or left( L) version
dimensions in mm
s
d
E
D min.
K10F AL41F P18C
Klemmhalter Typ toolholder type
R / L S08.0205.01 |
0.5-0.75 |
0.43 |
0.06 |
4.8 |
3.5 |
6 |
2.95 |
8 |
• |
R / L S08.0510.01 |
1.0-1.25 |
0.7 |
0.12 |
4.8 |
3.5 |
6 |
2.7 |
8 |
• |
R / L S08.0815.01 |
1.5-1.75 |
0.95 |
0.18 |
4.8 |
3.5 |
6 |
2.25 |
8 |
• |
R / L S09.0205.01 |
0.5-0.75 |
0.27 |
0.06 |
5.5 |
3.55 |
6.2 |
3.2 |
9 |
• |
R / L S09.0510.01 |
1.0-1.25 |
0.54 |
0.12 |
5.5 |
3.55 |
6.2 |
3.0 |
9 |
• |
R / L S09.0815.01 1.5-1.75 0.81 0.18 5.5 3.55 6.2 2.8 9 • R / L S09.0917.01 1.75-2.0 0.95 0.20 5.5 3.55 6.2 2.6 9 • R / L S09.1020.01 2.0-2.5 1.08 0.25 5.5 3.55 6.2 2.5 9 • R / L S09.1325.01 2.5-3.0 1.35 0.31 5.5 3.55 6.2 2.1 9 • R / L S09.1630.01 3.0-3.5 1.62 0.37 5.5 3.55 6.2 1.9 9 •
Weitere HM Sorten können Sie in der Sortenübersicht im Kapitel " Technische Hinweise " und der Preisliste finden.
Bestellbeispiel: für rechte Ausführung und Sorte RS08.0205.01 / AL41F
608
609
More carbide grades you can find in the grades summary in the chapter " technical instructions " and in the price list.
order-example: righthand version and grade RS08.0205.01 / AL41F
KL-TECH s. r. o | www. klte. cz
139
