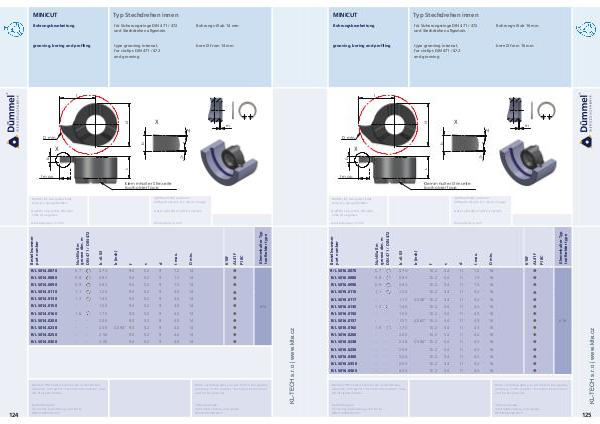

MINICUT Typ Stechdrehen innen Bohrungsbearbeitung für Sicherungsringe DIN 471 / 472
und Stechdrehen allgemein Bohrungs-Ø ab 14 mm
grooving, boring and profiling type grooving internal,
for circlips DIN 471 / 472
and grooving bore Ø from 14 mm
f
X
m
b
D min.
X
t max.
124
5.2 9 1.2 14
9.0 5.2 9 1.3 14
R/L S014.0090 0.9 0.93 9.0 5.2 9 1.5 14
R/L S014.0110 1.1 1.20 9.0 5.2 9 4.0 14
R/L S014.0130 1.3 1.40 9.0 5.2 9 4.0 14
R/L S014.0150 - 1.50 9.0 5.2 9 4.0 14
-
R/L S014.0160 1.6 1.70 9.0 5.2 9 4.0 14
R/L S014.0200 - - 2.00 9.0 5.2 9 4.0 14
R/L S014.0238 - - 2.38 0.094“ 9.0 5.2 9 4.0 14
R/L S014.0250 - - 2.50 9.0 5.2 9 4.0 14
R/L S014.0300 - - 3.00 9.0 5.2 9 4.0 14
614
Weitere HM Sorten können Sie in der Sorten-
übersicht im Kapitel "Technische Hinweise" und
der Preisliste finden. More carbide grades you can find in the grades
summary in the chapter "technical instructions"
and in the price list.
Bestellbeispiel:
für rechte Ausführung und Sorte
RS014.0070/AL41F order-example:
righthand version and grade
RS014.0070/AL41F
9.0 0.83
Klemmhalter
0.73 0.8 0.7 R/L S014.0080 R/L S014.0070 dimensions in mm
Abmessungen in mm state right (R) or left (L) version
Ausführung rechts (R) oder
links (L) angeben righthand (R): as shown
lefthand version (L): mirror image
Rechts (R): wie gezeichnet
Links (L): spiegelbildlich
Klemmhalter Stirnseite
toolholder face
