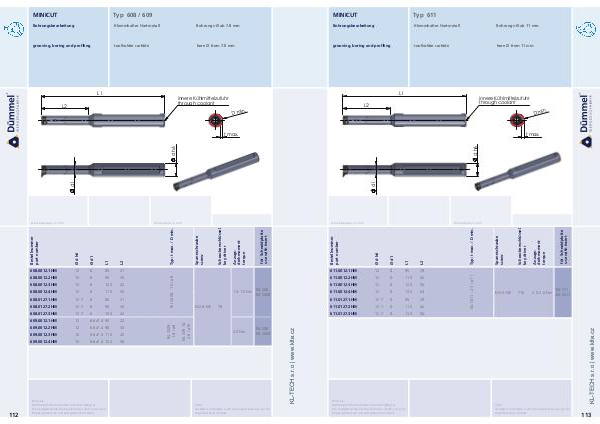

MINICUT Typ 611 Bohrungsbearbeitung Klemmhalter Hartmetall Bohrungs-Ø ab 11 mm
grooving, boring and profiling toolholder carbide bore Ø from 11 mm
L1
innere Kühlmittelzufuhr
through coolant
L2
in.
D m
t max.
611.0012.3HM 12 8 120 56
611.0012.4HM 12 8 130 64
611.0127.1HM 12.7 8 95 29
611.0127.2HM 12.7 8 110 42
611.0127.3HM 12.7 8 120 56
Hinweis:
Hartmetall-Klemmhalter mit beschädigter
Schneidplattenaufnahme können durch unseren
Reparaturservice instand gesetzt werden.
T10 2.5-3.0 Nm
für
M3.5-MC
R/L S11
R/L S011
note:
carbide-toolholder with damaged seating can be
repaired by Dümmel.
29
42
drehmoment
95 110 8 8 12 12 611.0012.1HM 611.0012.2HM
dimensions in mm
Abmessungen in mm
113
