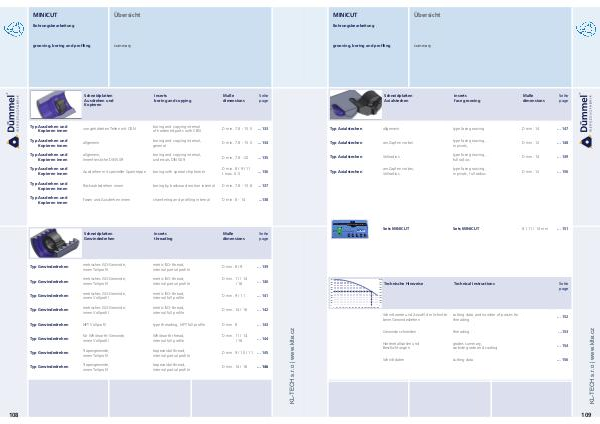

MINICUT Übersicht Bohrungsbearbeitung grooving, boring and profiling summary Schneidplatten Axialstechen inserts face grooving Maße dimensions Seite page Typ Axialstechen allgemein type face grooving D min. 14 ... 147 Typ Axialstechen am Zapfen vorbei type face grooving, in pivots, D min. 12 ... 148 Typ Axialstechen Vollradius type face grooving, full radius D min. 14 ... 149 Typ Axialstechen am Zapfen vorbei, Vollradius type face grooving, in pivots, full radius D min. 12 ... 150 Sets MINICUT Sets MINICUT 8 / 11 / 14 mm ... 151 Technische Hinweise Technical Instructions 0,10 10000 0,09 9000 0,08 8000 0,07 7000 0,06 6000 0,05 5000 0,04 4000 0,03 3000 Seite page 2000 0,02 1000 0,01 0 0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 Schnittwerte und Anzahl der Schnitte beim Gewindedrehen cutting data and number of passes for threading ... 152 Gewinde schneiden threading ...153 Hartmetallsorten und Beschichtungen grades summary, carbide grade and coating ... 154 Schnittdaten cutting data ... 156 0 109
