Dewalt Spare Part E-Book | Page 93

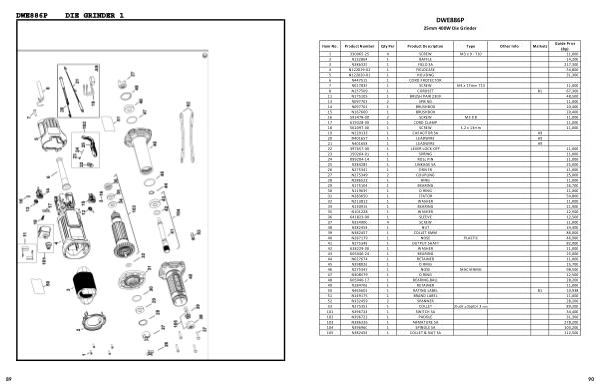

DWE886P
25mm 400W Die Grinder
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 330065-25 4 SCREW M3 x 9 - T10 11,000
2 N132864 1 BAFFLE 14,200
3 N386329 1 FIELD SA 217,300
4 N122019-01 1 FIELDCASE 54,800
5 N122020-01 1 HOUSING 31,300
6 N447519 1 CORD PROTECTOR
7 N017839 1 SCREW M4 x 17mm T15 11,000
8 N157509 1 CORDSET B1 67,300
11 N175105 1 BRUSH PAIR 230V 48,500
13 N097703 2 SPRING 11,000
14 N097702 1 BRUSHBOX 20,400
15 N167600 1 BRUSHBOX 20,400
16 593478-00 2 SCREW M3 X 8 11,000
17 619328-00 1 CORD CLAMP 11,000
18 562097-00 1 SCREW 4.2 x 13mm 11,000
19 N220133 1 CAPACITOR SA A9
20 N401657 1 LEADWIRE A9
21 N401658 1 LEADWIRE A9
22 397657-00 1 LEVER LOCK-OFF 11,000
23 150264-01 1 SPRING 11,000
24 099204-14 1 ROLL PIN 11,000
25 N384285 1 LINKAGE SA 25,000
26 N275347 1 DRIVER 11,000
27 N275349 2 COUPLING 25,000
28 N286522 1 RING 11,000
29 N175104 1 BEARING 26,700
30 N119639 1 O RING 11,000
31 N283650 1 STATOR 54,800
32 N213812 1 WASHER 11,000
34 N130916 1 BEARING 21,900
35 N101228 1 WASHER 12,500
36 641823-00 1 SLEEVE 12,500
37 N354900 4 SCREW 11,000
38 N382458 1 NUT 34,400
39 N382457 1 COLLET 6MM 86,000
40 N287179 1 NOSE PLASTIC 46,900
41 N275348 1 OUTPUT SHAFT 82,900
42 638229-00 1 WASHER 11,000
43 605040-24 1 BEARING 25,000
44 N027674 1 RETAINER 11,000
45 N398026 1 O RING 15,700
46 N275343 1 NOSE MACHINING 98,500
47 N308579 1 O RING 12,500
48 605040-17 1 BEARING,BALL 28,200
49 N184706 1 RETAINER 11,000
50 N465602 1 RATING LABEL B1 10,938
51 N149175 1 BRAND LABEL 11,000
52 N332459 2 SPANNER 28,200
53 N275352 1 COLLET chuck adaptor 3mm 89,200
101 N396724 1 SWITCH SA 34,400
102 N396722 1 PADDLE 31,300
103 N386326 1 ARMATURE SA 278,200
104 N396960 1 SPINDLE SA 103,200
105 N382456 1 COLLET & NUT SA 112,500
