PROFIS ENGINEERING
Corner
– Concrete Breakout Towards y- Edge

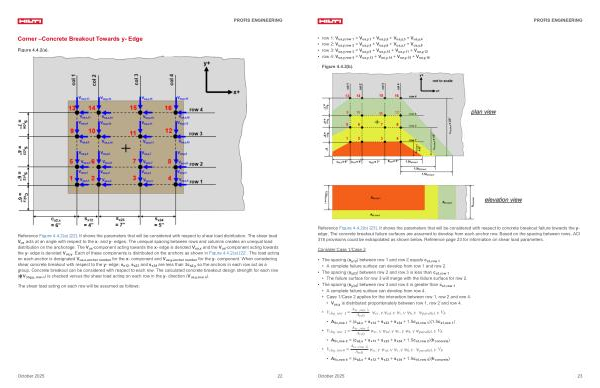

Figure 4.4.2( a).
Reference Figure 4.4.2( a) [ 22 ]. It shows the parameters that will be considered with respect to shear load distribution. The shear load V ua acts at an angle with respect to the x- and y- edges. The unequal spacing between rows and columns creates an unequal load distribution on the anchorage. The V ua-component acting towards the x- edge is denoted V ua, x and the V ua-component acting towards the y- edge is denoted V ua, y. Each of these components is distributed on the anchors as shown in Figure 4.4.2( a) [ 22 ]. The load acting on each anchor is designated V ua, x, anchor number for the x- component and V ua, y, anchor number for the y- component. When considering shear concrete breakout with respect to the y- edge; s x12, s x23 and s x34 are less than 3c a2, y so the anchors in each row act as a group. Concrete breakout can be considered with respect to each row. The calculated concrete breakout design strength for each row( ϕV cbg, y, row n) is checked versus the shear load acting on each row in the y- direction( V ua, y, row n).
The shear load acting on each row will be assumed as follows:
October 2025 22
