DBV Rainscreen Facade Product Technical Guide

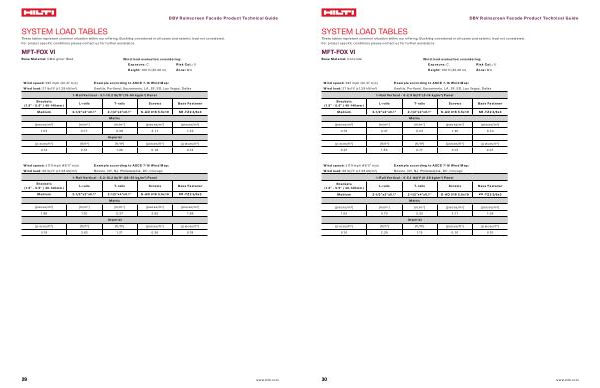

SYSTEM LOAD TABLES
These tables represent common situation within our offering . Buckling considered in all cases and seismic load not considered . For project specific conditions please contact us for further assistance .
MFT-FOX VI
Base Material : CMU grout filled
Wind load evaluation considering : |
Exposure : C |
Risk Cat .: II |
Height : 100 ft ( 30.48 m ) |
Zone : W4 |
Wind speed : ≤95 mph ( 42.47 m / s ) Example according to ASCE 7-16 Wind Map : Wind load : 27 lb / ft ² (± 1.28 kN / m ²)
Brackets ( 1.5 " - 5.5 " / 40-140mm )
Seattle , Portland , Sacramento , LA , SF , SD , Las Vegas , Dallas 1-Rail Vertical - 3.1-10.2 lb / ft ² ( 15-50 kg / m ²) Panel
L-rails T-rails Screws Base Fastener
Medium 2-1 / 2 " x2 " x0.1 " 2-1 / 2 " x4 " x0.1 " S-AD 01S 5.5x19 KB-TZ2 3 / 8x3 Metric
[ pieces / m ²] [ m / m ²] [ m / m ²] [ pieces / m ²] [ pieces / m ²] 1.53 0.77 0.38 3.07 1.53
Imperial [ pieces / ft ²] [ ft / ft ²] [ ft / ft ²] [ pieces / ft ²] [ pieces / ft ²] 0.14 2.51 1.26 0.28 0.14
Wind speed : ≤110 mph ( 49.17 m / s ) Example according to ASCE 7-16 Wind Map : Wind load : 36 lb / ft ² (± 1.28 kN / m ²)
Brackets ( 1.5 " - 5.5 " / 40-140mm )
Boston , NY , NJ , Philladelphia , DC , Chicago 1-Rail Vertical - 5.3-10.2 lb / ft ² ( 26-50 kg / m ²) Panel
L-rails T-rails Screws Base Fastener
Medium 2-1 / 2 " x2 " x0.1 " 2-1 / 2 " x4 " x0.1 " S-AD 01S 5.5x19 KB-TZ2 3 / 8x3 Metric
[ pieces / m ²] [ m / m ²] [ m / m ²] [ pieces / m ²] [ pieces / m ²] 1.96 1.10 0.37 3.92 1.96
Imperial [ pieces / ft ²] [ ft / ft ²] [ ft / ft ²] [ pieces / ft ²] [ pieces / ft ²] 0.18 3.62 1.21 0.36 0.18
