DBV Rainscreen Facade Product Technical Guide

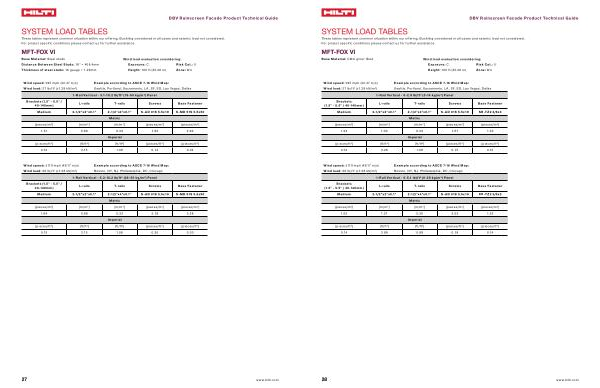

SYSTEM LOAD TABLES
These tables represent common situation within our offering . Buckling considered in all cases and seismic load not considered . For project specific conditions please contact us for further assistance .
MFT-FOX VI
Base Material : CMU grout filled Wind load evaluation considering : Exposure : C Height : 100 ft ( 30.48 m )
Risk Cat .: II Zone : W4
Wind speed : ≤95 mph ( 42.47 m / s ) Example according to ASCE 7-16 Wind Map : Wind load : 27 lb / ft ² (± 1.28 kN / m ²)
Brackets ( 1.5 " - 5.5 " / 40-140mm )
Seattle , Portland , Sacramento , LA , SF , SD , Las Vegas , Dallas 1-Rail Vertical - 0-2.9 lb / ft ² ( 0-14 kg / m ²) Panel
L-rails T-rails Screws Base Fastener
Medium 2-1 / 2 " x2 " x0.1 " 2-1 / 2 " x4 " x0.1 " S-AD 01S 5.5x19 KB-TZ2 3 / 8x3 Metric
[ pieces / m ²] [ m / m ²] [ m / m ²] [ pieces / m ²] [ pieces / m ²] 1.33 1.00 0.33 2.67 1.33
Imperial [ pieces / ft ²] [ ft / ft ²] [ ft / ft ²] [ pieces / ft ²] [ pieces / ft ²] 0.12 3.28 1.09 0.25 0.12
Wind speed : ≤110 mph ( 49.17 m / s ) Example according to ASCE 7-16 Wind Map : Wind load : 36 lb / ft ² (± 1.28 kN / m ²)
Brackets ( 1.5 " - 5.5 " / 40-140mm )
Boston , NY , NJ , Philladelphia , DC , Chicago 1-Rail Vertical - 0-5.1 lb / ft ² ( 0-25 kg / m ²) Panel
L-rails T-rails Screws Base Fastener
Medium 2-1 / 2 " x2 " x0.1 " 2-1 / 2 " x4 " x0.1 " S-AD 01S 5.5x19 KB-TZ2 3 / 8x3 Metric
[ pieces / m ²] [ m / m ²] [ m / m ²] [ pieces / m ²] [ pieces / m ²] 1.52 1.21 0.30 3.03 1.52
Imperial [ pieces / ft ²] [ ft / ft ²] [ ft / ft ²] [ pieces / ft ²] [ pieces / ft ²] 0.14 3.98 0.99 0.28 0.14
