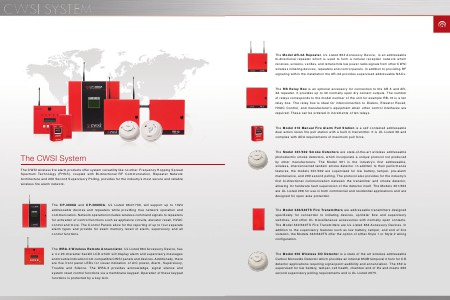

CWSI SYSTEM
The CWSI System
The CWSI wireless fire alarm products offer system versatility like no other. Frequency Hopping Spread
Spectrum Technology (FHSS), coupled with Bi-directional RF Communication, Repeater Network
Architecture and 200 Second Supervisory Polling, provides for the industry’s most secure and reliable
wireless fire alarm network.
The CP-3000A and CP-3000DA, UL Listed 864/1730, will support up to 1024
addressable devices and repeaters while providing true network operation and
communication. Network operation includes wireless command signals to repeaters
for activation of control functions such as appliance circuits, elevator recall, HVAC
control and more. The Control Panels allow for the reporting of up to four separate
alarm types and provide for event memory recall of alarm, supervisory and all
control functions.
The WRA-3 Wireless Remote Annunciator, UL Listed 864 Accessory Device, has
a 4 x 20 character backlit LCD which will display alarm and supervisory messages
and trouble indication from compatible CWSI panels and devices. Additionally, there
are five front panel LEDs for visual indication of A/C power, Alarm, Supervisory,
Trouble and Silence. The WRA-3 provides acknowledge, signal silence and
system reset control functions via a membrane keypad. Operation of these keypad
functions is protected by a key lock.
