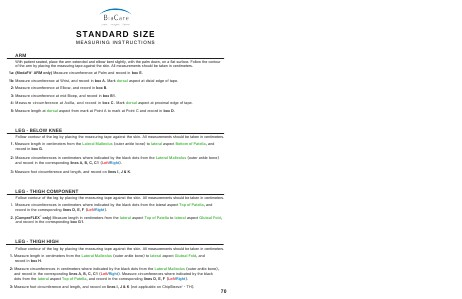

S T AN D AR D SIZE
ME A S URING INSTRUCTIO NS
ARM
With patient seated, place the arm extended and elbow bent slightly, with the palm down, on a flat surface. Follow the contour
of the arm by placing the measuring tape against the skin. All measurements should be taken in centimeters.
1a: (MedaFit™ ARM only) Measure circumference at Palm and record in box E.
1b: Measure circumference at Wrist, and record in box A. Mark dorsal aspect at distal edge of tape.
2: Measure circumference at Elbow, and record in box B.
3: Measure circumference at mid Bicep, and record in box B1.
4: Measure circumference at Axilla, and record in box C. Mark dorsal aspect at proximal edge of tape.
5: Measure length at dorsal aspect from mark at Point A to mark at Point C and record in box D.
LEG - BELOW KNEE
Follow contour of the leg by placing the measuring tape against the skin. All measurements should be taken in centimeters.
1. Measure length in centimeters from the Lateral Malleolus (outer ankle bone) to lateral aspect Bottom of Patella, and
record in box G.
2: Measure circumferences in centimeters where indicated by the black dots from the Lateral Malleolus (outer ankle bone)
and record in the corresponding lines A, B, C, C1 (Left/Right).
3: Measure foot circumference and length, and record on lines I, J & K.
LEG - THIGH COMPONENT
Follow contour of the leg by placing the measuring tape against the skin. All measurements should be taken in centimeters.
1. Measure circumferences in centimeters where indicated by the black dots from the lateral aspect Top of Patella, and
record in the corresponding lines D, E, F (Left/Right).
2. (CompreFLEX™ only) Measure length in centimeters from the lateral aspect Top of Patella to lateral aspect Gluteal Fold,
and record in the corresponding box G1.
LEG - THIGH HIGH
Follow contour of the leg by placing the measuring tape against the skin. All measurements should be taken in centimeters.
1. Measure length in centimeters from the Lateral Malleolus (outer ankle bone) to lateral aspect Gluteal Fold, and
record in box H.
2: Measure circumferences in centimeters where indicated by the black dots from the Lateral Malleolus (outer ankle bone),
and record in the corresponding lines A, B, C, C1 (Left/Right). Measure circumferences where indicated by the black
dots from the lateral aspect Top of Patella, and record in the corresponding lines D, E, F (Left/Right).
3: Measure foot circumference and length, and record on lines I, J & K (not applicable on ChipSleeve™ - TH).
