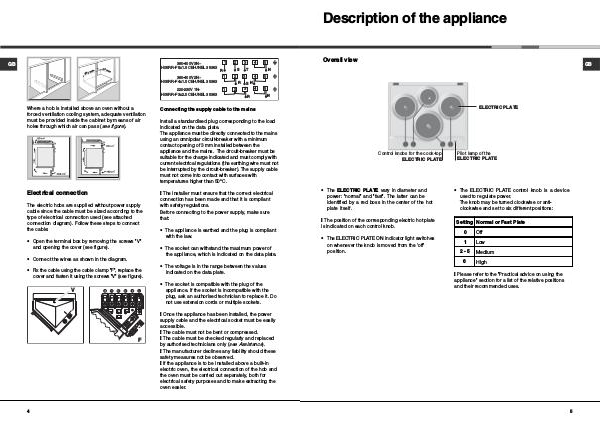

Description of the appliance
Overall view
GB
ELECTRIC PLATE
Control knobs for the cook-top
ELECTRIC PLATE
• The ELECTRIC PLATE vary in diameter and
power: "normal" and "fast". The latter can be
identified by a red boss in the center of the hot
plate itself.
! The position of the corresponding electric hot plate
is indicated on each control knob.
• The ELECTRIC PLATE ON indicator light switches
on whenever the knob is moved from the 'off'
position.
Pilot lamp of the
ELECTRIC PLATE
• The ELECTRIC PLATE control knob is a device
used to regulate power.
The knob may be turned clockwise or anti-
clockwise and set to six different positions:
Setting Normal or Fast Plate
0 Off
1 Low
2 - 5
6
Medium
High
! Please refer to the "Practical advice on using the
appliance" section for a list of the relative positions
and their recommended uses.
5
