560
mm
.
45 m
1 2
380-400V 2N~
H05RR-F 4x1.5 CEI-UNEL 35363 1 2
220-230V 1N~
H05RR-F 3x2.5 CEI-UNEL 35363 1 2
380-400V 3N~
H05RR-F 5x1.5 CEI-UNEL 35363
GB
m.
3
3
R
5
4 5
4 5
T
S
R
4
N
S N
3
R
N

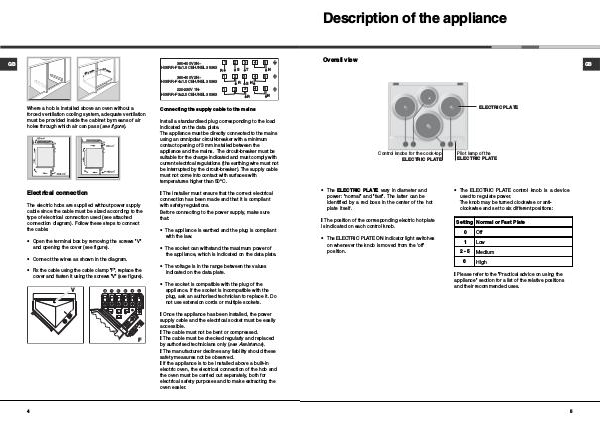

Where a hob is installed above an oven without a
forced ventilation cooling system, adequate ventilation
must be provided inside the cabinet by means of air
holes through which air can pass (see figure). Connecting the supply cable to the mains
Electrical connection ! The installer must ensure that the correct electrical
connection has been made and that it is compliant
with safety regulations.
Before connecting to the power supply, make sure
that:
The electric hobs are supplied without power supply
cable since the cable must be sized according to the
type of electrical connection used (see attached
connection diagram). Follow these steps to connect
the cable:
• Open the terminal box by removing the screws "V"
and opening the cover (see figure).
Install a standardised plug corresponding to the load
indicated on the data plate.
The appliance must be directly connected to the mains
using an omnipolar circuit-breaker with a minimum
contact opening of 3 mm installed between the
appliance and the mains. The circuit-breaker must be
suitable for the charge indicated and must comply with
current electrical regulations (the earthing wire must not
be interrupted by the circuit-breaker). The supply cable
must not come into contact with surfaces with
temperatures higher than 50°C.
• The appliance is earthed and the plug is compliant
with the law.
• The socket can withstand the maximum power of
the appliance, which is indicated on the data plate.
• Connect the wires as shown in the diagram.
• Fix the cable using the cable clamp "F", replace the
cover and fasten it using the screws "V" (see figure).
V
1
2
3
4
• The socket is compatible with the plug of the
appliance. If the socket is incompatible with the
plug, ask an authorised technician to replace it. Do
not use extension cords or multiple sockets.
5
F
4
• The voltage is in the range between the values
indicated on the data plate.
! Once the appliance has been installed, the power
supply cable and the electrical socket must be easily
accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced
by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these
safety measures not be observed.
! If the appliance is to be installed above a built-in
electric oven, the electrical connection of the hob and
the oven must be carried out separately, both for
electrical safety purposes and to make extracting the
oven easier.
