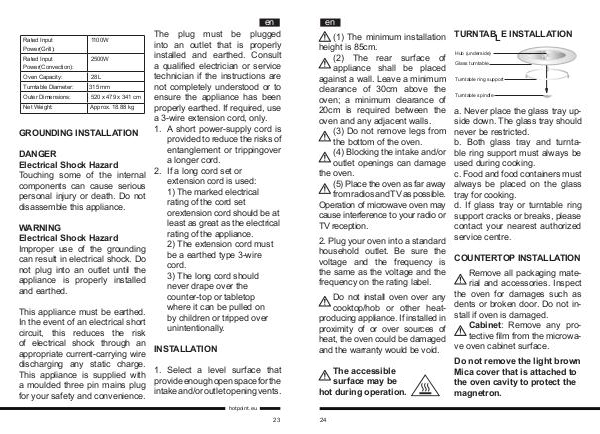

(1) The minimum installation
height is 85cm.
(2) The rear surface of
appliance shall be placed
against a wall. Leave a minimum
clearance of 30cm above the
oven; a minimum clearance of
20cm is required between the
oven and any adjacent walls.
(3) Do not remove legs from
the bottom of the oven.
(4) Blocking the intake and/or
outlet openings can damage
the oven.
(5) Place the oven as far away
from radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or
TV reception.
Turntabl e Installation
Hub (underside)
Glass turntable
Turntable ring support
Turntable spindle
a. Never place the glass tray up-
side down. The glass tray should
never be restricted.
b. Both glass tray and turnta-
ble ring support must always be
used during cooking.
c. Food and food containers must
always be placed on the glass
tray for cooking.
d. If glass tray or turntable ring
support cracks or breaks, please
contact your nearest authorized
2. Plug your oven into a standard service centre.
household outlet. Be sure the
voltage and the frequency is Countertop Installation
the same as the voltage and the
Remove all packaging mate-
frequency on the rating label.
rial and accessories. Inspect
the
oven for damages such as
Do not install oven over any
cooktop/hob or other heat- dents or broken door. Do not in-
producing appliance. If installed in stall if oven is damaged.
Cabinet: Remove any pro-
proximity of or over sources of
tective film from the microwa-
heat, the oven could be damaged
ve
oven
cabinet surface.
and the warranty would be void.
The accessible
surface may be
hot during operation.
24
Do not remove the light brown
Mica cover that is attached to
the oven cavity to protect the
magnetron.
